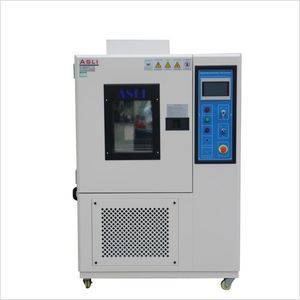

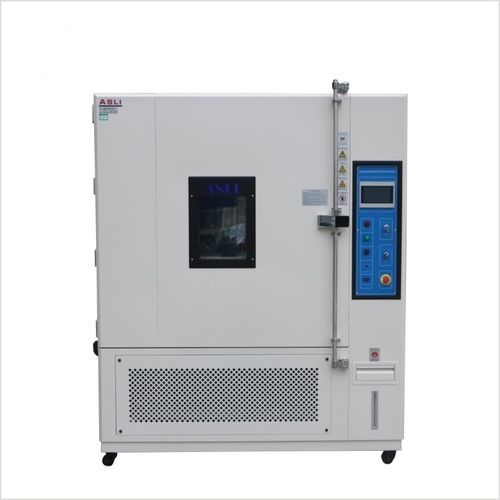

Thermostatic test chamber TH series

climatictemperaturehumidity

Overview
Programmable TH series climatic test cabinets provide controlled temperature and humidity environments for performance and reliability testing of aerospace, defense, automotive, electronics, materials and laboratory samples. Available in benchtop, floor-standing and walk-in configurations, the series supports selectable temperature and humidity ranges, variable ramp rates and multiple safety protections.

Design and test capabilities
Designed for temperature & humidity tests, cold resistance, thermal cycling, ultra-low and high-temperature trials, storage conditioning and calibration. Configurable for environmental stress screening, accelerated aging and qualification testing with optional explosion-proof or battery-test adaptations.

Technical Specifications

• Model: TH-80 | TH-150 | TH-225 | TH-408 | TH-800 | TH-1000
• Internal dimensions (WxHxD mm): 400x500x400 | 500x600x500 | 600x750x500 | 600x850x800 | 1000x1000x800 | 1000x1000x1000
• External dimensions (WxHxD mm): 950x1650x950 | 1050x1750x1050 | 1200x1900x1150 | 1200x1950x1350 | 1600x2000x1450 | 1600x2100x1450
• Temperature range options: minimum down to -80°C and maximum up to +200°C depending on configuration (selectable low-temp options: +25°C, 0°C, -20°C, -40°C, -60°C, -70°C, -80°C)
• Humidity range: optional 20%–98% RH / 10%–98% RH / 5%–98% RH
• Analytic accuracy / distribution uniformity: 0.1°C; 0.1% RH / uniformity ±2.0°C; ±3.0% RH
• Control accuracy: ±0.5°C; ±2.5% RH
• Temperature ramp rates: heating approx. 0.1–3.0°C/min; cooling approx. 0.1–1.5°C/min (faster cooling rates available as special option)
• Construction: inner chamber SUS 304 stainless steel; outer: stainless or painted cold-rolled steel; insulation: high-density, high-temperature resistant foam
• Cooling: air or water cooling; single-segment compressor for -40°C, double-segment for -70°C and lower
• Protection: overload, high/low voltage, over-temperature/humidity, water shortage and fault alarm systems
• Power: AC 220V 1ph 3-wire or AC 380V 3ph 5-wire, 50/60 Hz
• Approx. weight: 150–450 kg depending on model

Product features

• Inner and outer surfaces in SUS 304 stainless steel (interior)
• Energy-efficient refrigeration with electronic expansion valve control
• Dedicated humidity generation and precise humidity control system
• Thermal break construction for stable extreme-condition testing
• 3" cable port with cover; shelves and casters included for bench and floor models
• 7" touch-screen controller with USB port for program and data transfer; remote monitoring and programming supported
• Multilingual display configurable (English, Chinese and others)
• Alarm diagnostics with event history and back-trace for troubleshooting

Available volumes & temperature ranges

• Volumes: 80 L, 150 L, 225 L, 408 L, 800 L, 1000 L, plus custom sizes
• Minimum temperature options: -80°C, -70°C, -60°C, -40°C, 0°C, room temperature
• Maximum temperature options: +80°C, +100°C, +150°C, +180°C, +200°C

Typical applications

• Aerospace & defense — environmental screening for avionics, sensors and components
• Automotive & EV — reliability testing for ECUs, motors, electronics and battery test with explosion-proof options
• Electronics & semiconductors — stability, humidity and thermal cycling for PCBs, ICs and connectors
• LED & lighting — thermal and humidity performance validation
• Packaging & transport — damp heat and temperature cycle testing for packaging materials
• Photovoltaics & energy storage — damp heat and thermal cycling for cells, modules and storage systems
• Materials research & QA labs — accelerated aging and environmental stability evaluation
• Universities & test laboratories — configurable test conditions for research and certification

Notes
Optional accessories include inner observation door with port, recorder, water purifier, dehumidifier and remote communication modules. Compressors from reputable manufacturers available as specified; final configuration tailored to required temperature/humidity ranges and regulatory or safety constraints.
