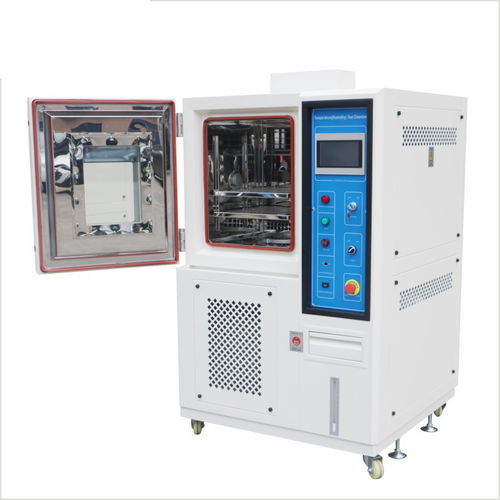

Thermostatic test chamber TH series

climatichumiditytemperature

Overview
This programmable temperature and humidity test chamber (environmental test machine) is engineered for textile conditioning and testing in accordance with ISO 139 and ASTM D1776. It provides controlled temperature and humidity profiles for evaluating material and product tolerance to heat, cold, dry and humid conditions. Standard models and custom sizes are available across the TH series to suit laboratory, QA and production test needs.

Key Characteristics

• Interior and exterior in SUS 304 stainless steel for corrosion resistance and easy cleaning
• Energy-efficient refrigeration with electronic expansion valve control
• Dedicated humidity generation and precise humidity control
• Thermal break construction for accurate extreme-condition testing
• 3" cable port with cover, two adjustable shelves and casters included
• 7" touch-screen controller with USB port for program/data upload/download and remote access
• Multilingual display and alarm diagnostics with history for troubleshooting
• Optional features: temperature cycling, steady-state tests, fast change-rate configurations

Standards and Standard Conditions

• Designed to support: ISO 139 — Standard Atmospheres for Conditioning and Testing; ASTM D1776 — Conditioning and Testing Textiles
• Also applicable to IEC 60068 series, MIL-STD-810 and GB/T 2423 depending on configuration and setup
• Typical textile conditioning: 21 ± 2 °C, 65 ± 5 % R.H.; other examples: 50 °C with 10–25 % R.H.

Applications Across Industries

• Textile testing and textile product quality assurance
• Aerospace & defense — environmental screening for avionics and components
• Automotive & EV — electronic modules, sensors and component reliability under thermal/humidity stress
• Electronics & semiconductors — PCB, connector and component stability testing
• Materials R&D — accelerated aging and environmental stability for polymers, coatings and composites
• Universities, test laboratories and certification bodies

Technical Specifications

• Series / Models: TH series (TH-80, TH-150, TH-225, TH-408, TH-800, TH-1000)
• Internal dimensions WxHxD (mm): TH-80: 400×500×400; TH-150: 500×600×500; TH-225: 600×750×500; TH-408: 600×850×800; TH-800: 1000×1000×800; TH-1000: 1000×1000×1000
• External dimensions WxHxD (mm): TH-80: 950×1650×950; TH-150: 1050×1750×1050; TH-225: 1200×1900×1150; TH-408: 1200×1950×1350; TH-800: 1600×2000×1450; TH-1000: 1600×2100×1450
• Temperature range: Low options: 25 °C, 0 °C, −20 °C, −40 °C, −60 °C, −70 °C; High options: 150 °C, 180 °C, 200 °C
• Humidity range (optional): 20–98 % R.H. / 10–98 % R.H. / 5–98 % R.H.
• Analytical accuracy / distribution uniformity (T / RH): 0.1 °C; 0.1 % R.H. / ±2.0 °C; ±3.0 % R.H.
• Control accuracy (T / RH): ±0.5 °C; ±2.5 % R.H.
• Ramp rates: Rise approx. 0.1–3.0 °C/min; Fall approx. 0.1–1.5 °C/min (special option: fall min. 1.5 °C/min)
• Materials: Inner box SUS 304; outer box stainless steel or cold-rolled painted steel; high-density thermal insulation
• Cooling system: Air-cooled or water-cooled; single-stage compressor for −40 °C, two-stage for −70 °C
• Protection devices: compressor overload, high/low refrigerant pressure, over-temperature and over-humidity protection, water shortage alarm
• Optional accessories: inner door with service port, recorder, water purifier, dehumidifier
• Compressor brands available: Tecumseh, Bitzer
• Power supply: AC 220V 1ph 3-line 50/60 Hz or AC 380V 3ph 5-line 50/60 Hz
• Approx. weight by model (kg): TH-80: 150; TH-150: 180; TH-225: 250; TH-408: 320; TH-800: 400; TH-1000: 450
