Thermostatic test chamber TH series

climatichumiditytemperature

Overview

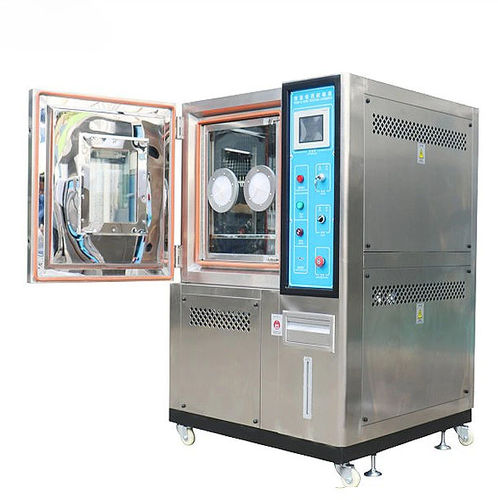

This TH series temperature and humidity test chamber features an inner operation door with a viewing/operation hole that enables inspection and limited manipulation of the test item without opening the main chamber door. The units deliver repeatable climatic conditions for industrial qualification and R&D across aerospace, automotive, electronics, materials and test laboratories. Multiple pre-engineered sizes and configurable options are available for different temperature/humidity ranges and ramp rates.

Key product features

• Inner transparent operation door with inspection/operation hole to observe or operate samples without disturbing chamber environment
• Energy-saving refrigeration design; option for electronic expansion valve
• PID control with touchscreen interface for precise setpoint management
• Wide temperature range options (low down to -70℃; high up to 150/180/200℃) and multiple humidity control ranges (5–98% R.H. options)
• Corrosion-resistant SUS 304 stainless steel interior for durability and easy cleaning
• Comprehensive protections: over-temperature, over-humidity, compressor overload, water-shortage warning and fault alarms

Applications

• Aerospace & Defense — environmental screening and qualification of avionics, sensors and components
• Automotive & EV — reliability and battery/environmental safety testing for ECUs, motors and cells
• Electronics & Semiconductors — humidity and thermal stability tests for PCBs, ICs and connectors
• LED & Lighting — thermal cycling and humidity resistance validation
• Packaging & Transport — damp heat and temperature cycling for packaging materials and shipped goods
• Photovoltaics & New Energy — damp heat and cycling tests for solar cells and storage components
• Materials Research & Labs — accelerated aging and environmental stability evaluation for polymers, coatings and metals

Key Advantages

• Stable, repeatable control with PID touchscreen achieving ±0.5℃ and ±2.5% R.H. control accuracy
• Energy-efficient refrigeration and high-density insulation to reduce operating cost
• Durable SUS 304 interior and configurable outer casing options
• Flexible humidity and temperature options to match material and test standards
• Extensive safety and fault protections plus data logging and remote access features (USB, multilingual display, alarm history)

Technical Specifications
Models: TH-80 | TH-150 | TH-225 | TH-408 | TH-800 | TH-1000
Internal Dimension WxHxD (mm): 400x500x400 | 500x600x500 | 600x750x500 | 600x850x800 | 1000x1000x800 | 1000x1000x1000
External Dimension WxHxD (mm): 950x1650x950 | 1050x1750x1050 | 1200x1900x1150 | 1200x1950x1350 | 1600x2000x1450 | 1600x2100x1450
Temperature Range: Low temperature options A: 25℃, B: 0℃, C: -20℃, D: -40℃, E: -60℃, F: -70℃; High temperature options: 150℃ / 180℃ / 200℃
Humidity Range: Optional 20%~98% R.H. / 10%~98% R.H. / 5%~98% R.H.
Analytic accuracy / Distribution uniformity: 0.1℃; 0.1% R.H. / ±2.0℃; ±3.0% R.H.
Control accuracy: ±0.5℃; ±2.5% R.H.
Temperature ramp rates: Rising approx. 0.1–3.0℃/min; Falling approx. 0.1–1.5℃/min (faster falling speed optional)
Material: Inner box SUS 304# stainless steel; outer box stainless or painted cold-rolled steel; high-density thermal insulation
Cooling system: Air-cooled or water-cooled; single-segment compressor for -40℃, double-segment for -70℃
Protection devices: Compressor overload, high/low voltage protection, over-temperature/over-humidity protection, water-shortage alarm, fault warning
Optional accessories: Inner door with operation hole, recorder, water purifier, dehumidifier, access ports, shelves, dry air purge, demineralizer
Compressor brands: Tecumseh (France) or Bitzer (Germany)
Power: AC 220V 1ph 3 lines 50/60 Hz or AC 380V 3ph 5 lines 50/60 Hz
Approx. weight (kg): 150 | 180 | 250 | 320 | 400 | 450
