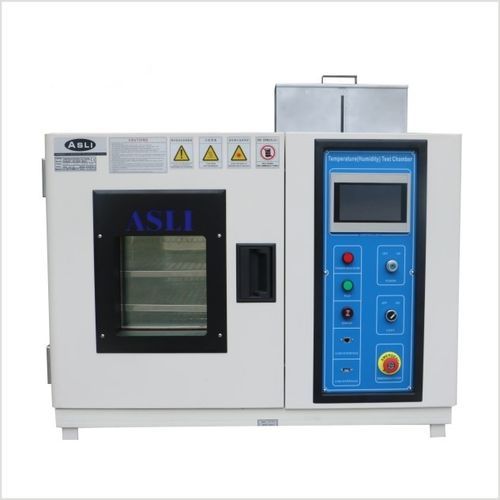

Climate chamber TH seriestemperaturehumidityenvironmental stress screening
Add to favorites
Compare this product
Characteristics
- Type
- climatic
- Controlled parameter
- temperature, humidity
- Test type
- environmental stress screening, for rapid temperature cycling, aging, stability, temperature stability
- Application domain
- laboratory, for quality control
- Configuration
- benchtop
- Protection level
- explosion-proof
- Chamber material
- stainless steel
- Options and accessories
- temperature regulator, with cyclical temperature/humidity control, with window, remote-controlled, touchscreen-controlled, with temperature and climatic control
- Other characteristics
- stainless steel
- Temperature
Max.: 200 °C
(392 °F)Min.: -70 °C
(-94 °F)- Interior length
Max.: 1,000 mm
(39.37 in)Min.: 400 mm
(15.75 in)- Interior height
Max.: 1,000 mm
(39.37 in)Min.: 500 mm
(19.69 in)- Interior depth
Max.: 1,000 mm
(39.37 in)Min.: 400 mm
(15.75 in)- External length
Max.: 1,600 mm
(63 in)Min.: 950 mm
(37.4 in)- External height
Max.: 2,100 mm
(82.68 in)Min.: 1,650 mm
(64.96 in)- External depth
Max.: 1,450 mm
(57.09 in)Min.: 950 mm
(37.4 in)
Description
Overview
Benchtop stability test climate chamber (TH series) providing precise temperature and humidity control for laboratories, R&D and QA environments. Compact footprint with configurable temperature and humidity ranges, suitable for stability, aging, thermal cycling and reliability tests across multiple sectors.
Key Features
Technical Specifications
Applications Across Industries
Common Test Standards Applicable
Key Product Advantages
Benchtop stability test climate chamber (TH series) providing precise temperature and humidity control for laboratories, R&D and QA environments. Compact footprint with configurable temperature and humidity ranges, suitable for stability, aging, thermal cycling and reliability tests across multiple sectors.
Key Features
- PID control with 7" touchscreen for repeatable setpoint management.
- Selectable temperature and humidity ranges to match varied test protocols.
- Energy-efficient refrigeration with electronic expansion valve and high-density insulation.
- Corrosion-resistant interior in SUS 304 stainless steel for easy cleaning and durability.
- Comprehensive protections: over-temperature, over-humidity, compressor overload, water-shortage and system fault warnings.
- Data logging and connectivity: USB, remote data access, multilingual display and alarm history.
Technical Specifications
- Models: TH-80, TH-150, TH-225, TH-408, TH-800, TH-1000.
- Internal dimensions (W×H×D mm): 400×500×400 / 500×600×500 / 600×750×500 / 600×850×800 / 1000×1000×800 / 1000×1000×1000.
- External dimensions (W×H×D mm): 950×1650×950 / 1050×1750×1050 / 1200×1900×1150 / 1200×1950×1350 / 1600×2000×1450 / 1600×2100×1450.
- Temperature range: selectable lows (25℃, 0℃, -20℃, -40℃, -60℃, -70℃) and highs (up to 150℃, 180℃, 200℃).
- Humidity range (optional): 20%–98% R.H. / 10%–98% R.H. / 5%–98% R.H.
- Analytic accuracy & uniformity: 0.1℃; 0.1% R.H. / distribution ±2.0℃; ±3.0% R.H.
- Control accuracy: ±0.5℃; ±2.5% R.H.
- Temperature change rates: rise approx. 0.1–3.0℃/min; fall approx. 0.1–1.5℃/min (faster fall rates optional).
- Construction: inner box SUS 304 stainless steel; outer box stainless or painted cold-rolled steel; high-density foam insulation resistant to heat and chemicals.
- Cooling: air or water cooling; single-segment compressor for -40℃, double-segment for -70℃.
- Protection devices: fuse-free switch, compressor overload protection, high/low coolant protection, over-humidity and over-temperature protection, water-shortage warning.
- Optional accessories: inner observation door, recorder, water purifier/demineralizer, dehumidifier, additional shelves, explosion-proof configuration, dry air purge.
- Compressor brands: Tecumseh or Bitzer (options).
- Power supply: AC 220V 1ph (3 lines) or AC 380V 3ph (5 lines), 50/60 Hz.
- Approx. weight (kg): TH-80: 150; TH-150: 180; TH-225: 250; TH-408: 320; TH-800: 400; TH-1000: 450.
Applications Across Industries
- Aerospace & Defense — environmental stress screening for avionics, sensors and aerospace components.
- Automotive & EV — thermal cycling and damp-heat tests for ECUs, motors, electronics and batteries (explosion-proof options for battery testing).
- Electronics & Semiconductors — stability and humidity testing for PCBs, ICs, connectors and consumer electronics.
- LED & Lighting — thermal performance and humidity resistance validation for modules and luminaires.
- Packaging & Transport — damp-heat and temperature cycling for packaging materials and products for shipping.
- Photovoltaics & New Energy — damp-heat and thermal cycling for solar cells, modules and storage components.
- Materials Research — accelerated aging and environmental stability evaluation for polymers, coatings, composites and metals.
- Universities & Testing Labs — standard-compliant test conditions for research and certification.
Common Test Standards Applicable
- IEC 60068-2-1 — Cold
- IEC 60068-2-2 — Dry Heat
- IEC 60068-2-78 — Damp Heat, Steady State
- IEC 60068-2-30 — Damp Heat, Cyclic
- ISO 139 — Standard atmospheres for conditioning and testing
- ASTM D1776 — Conditioning and testing textiles
- MIL-STD-810 — Environmental engineering and laboratory tests
- GB/T 2423 — Environmental testing for electric and electronic products
Key Product Advantages
- Stable, repeatable test conditions via PID control and touchscreen interface.
- Energy-efficient refrigeration and high-density insulation to reduce operating load.
- SUS 304 interior for corrosion resistance and easy maintenance.
- Flexible humidity control options to match material-specific requirements.
- Extensive safety protections to safeguard operators and samples.
- Data logging and remote access capabilities for traceability and test records.
