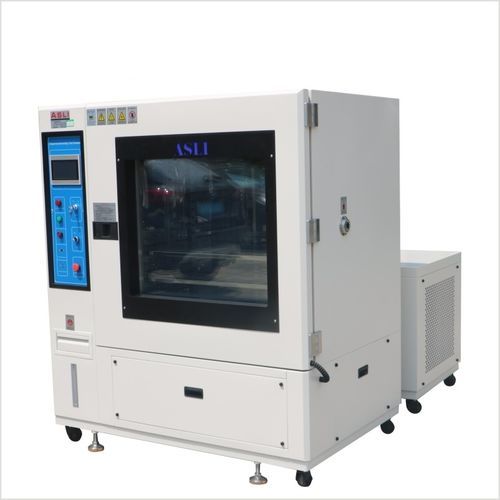

Thermostatic test chamber TH series

climatichumiditytemperature

Summary
Precision temperature and humidity test chambers designed for stable, wide-range environmental testing in industrial and laboratory settings. Applicable for performance testing across aerospace, marine, defence, automotive, information electronics, instruments and meters, materials and electronic engineering products. ASLI offers configurable sizes and options to meet specific test requirements.

Product description
This constant temperature and humidity test chamber is engineered to evaluate product performance under controlled climatic conditions. ASLI provides standard and custom sizes, a wide range of temperature ramp rates, humidity levels and numerous standard and optional features including temperature cycling, steady-state testing and rapid change capability. Optional items include access ports, explosion-proof construction, silent mode, additional shelving, battery safety options, dry air purge, water filtration/demineralization system and more.

Applications

• Aerospace & Defence: environmental stress screening for avionics, sensors and components under extreme temperature and humidity conditions.
• Automotive & EVs: reliability testing for ECUs, motors and electronic components under thermal cycles and humid heat.
• Electronics & Semiconductors: stability and humidity testing for PCBs, ICs and connectors.
• LED & Lighting: thermal performance and moisture resistance validation for LED modules and drivers.
• Packaging & Transport: humid heat and temperature cycle tests for packaging materials and products exposed to long-distance shipping.
• Photovoltaics & New Energy: thermal cycling for solar cells, modules and energy storage components.
• Materials Research: accelerated ageing and environmental stability evaluation for polymers, coatings and metals.
• Universities & Laboratories: controlled test conditions for research projects and certification.

Common test standards
IEC 60068-2-1 (Cold); IEC 60068-2-2 (Dry heat); IEC 60068-2-78 (Damp heat, steady state); IEC 60068-2-30 (Damp heat, cyclic); ISO 139; ASTM D1776; MIL-STD-810; GB/T 2423. Final compliance depends on chamber configuration and selected standard version.

Key benefits

• Stable and repeatable test conditions via PID control and 7" touchscreen with typical control ±0.5 °C and ±2.5 % RH.
• Energy-efficient cooling using electronic expansion valve and high-density insulation.
• Corrosion-resistant construction with SUS 304# stainless steel interior.
• Flexible humidity options: 20–98 %, 10–98 % or 5–98 % RH.
• Comprehensive safety protection: over-temperature, over-humidity, compressor overload and water shortage protection.
• Data logging and connectivity: standard USB, remote access, multilingual display and alarm history.

Technical specifications
Models: TH-80; TH-150; TH-225; TH-408; TH-800; TH-1000
Internal dimension W x H x D (mm): 400x500x400; 500x600x500; 600x750x500; 600x850x800; 1000x1000x800; 1000x1000x1000
External dimension W x H x D (mm): 950x1650x950; 1050x1750x1050; 1200x1900x1150; 1200x1950x1350; 1600x2000x1450; 1600x2100x1450
Temperature range: Tmin options: 25 °C, 0 °C, -20 °C, -40 °C, -60 °C, -70 °C; Tmax options: 150 °C, 180 °C, 200 °C
Humidity range: Optional: 20%~98% RH; 10%~98% RH; 5%~98% RH
Analytical precision / Uniformity of temperature and humidity distribution: 0.1 °C; 0.1% RH / ±2.0 °C; ±3.0% RH
Control accuracy for temperature and humidity: ±0.5 °C; ±2.5% RH
Temperature ramp rate: rise approx. 0.1~3.0 °C/min; fall approx. 0.1~1.5 °C/min (minimum fall rate 1.5 °C/min as special option)
Material: interior SUS 304# stainless steel; exterior stainless or cold-rolled steel with paint; high-temperature, high-density insulation (ethyl acetate foam and other resistant materials)
Cooling system: air-cooled or water-cooled; single-stage compressor for -40 °C; two-stage compressor for -70 °C
Protection devices: non-fuse breaker, compressor overload protection, high/low refrigerant pressure protection, over-humidity and over-temperature protection, fuses, fault warning system, water shortage protection
Optional accessories: inner door with operation port, recorder, water purifier, dehumidifier
Compressor: typical brands indicated (e.g. Tecumseh, Bitzer)
Power supply: AC 220V 1ph 3-wire 50/60 Hz | AC 380V 3ph 5-wire 50/60 Hz
Approx. weight (kg): 150; 180; 250; 320; 400; 450

Product details
Control panel, stainless steel interior, humidity and water supply system, refrigeration system, cable port and access hole, shelves and casters, safety protection devices.

Features / technical specifications

• Series: TH series (models TH-80 to TH-1000)
• PID control with 7" touchscreen
• Customizable temperature ranges from -70 °C to 200 °C depending on configuration
• Humidity options 5–98% RH, 10–98% RH or 20–98% RH
• Interior SUS 304# stainless steel; durable exterior coating
• Air-cooled or water-cooled refrigeration systems; single- or two-stage compressors
• Comprehensive protections: over-temperature, over-humidity, compressor overload, water shortage alarm
• Connectivity and data logging: USB and remote access
• Optional accessories: ported inner door, recorder, water purifier, dehumidifier
