Climate chamber TH series

thermostatictemperaturehumidity

Overview

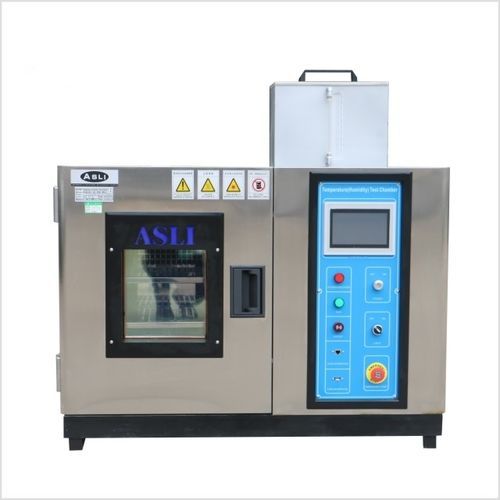

The desktop stability test chamber provides controlled temperature and humidity conditions for performance evaluation of aerospace, defense, marine, automotive, electronics, instrumentation, materials and battery systems. Pre-engineered and custom sizes are available across the TH series with configurable temperature ramp rates, humidity ranges and a variety of standard and optional features for steady-state, thermal cycling and rapid-change testing.

Applications

• Aerospace & defense: environmental stress screening for avionics, sensors and components under extreme temperature and humidity.
• Automotive & EV: reliability tests for ECUs, motors and automotive electronics; battery testing with explosion-proof options.
• Electronics & semiconductors: stability and humidity testing for PCBs, ICs, connectors and consumer devices before mass production.
• LED & lighting: thermal performance and humidity resistance validation for modules, drivers and luminaires.
• Packaging & transport: damp heat and temperature cycling for packaging materials and products exposed to long-distance shipping.
• Photovoltaics & new energy: damp heat and cycling tests for solar cells, modules and energy storage components.
• Materials research: accelerated aging and environmental stability evaluation for polymers, composites, coatings and metals.
• Universities & testing labs: standard-compliant conditions for research, certification and R&D testing.

Models

• TH-80
• TH-150
• TH-225
• TH-408
• TH-800
• TH-1000

Options & Key Features

• Temperature range: selectable low options 25℃, 0℃, -20℃, -40℃, -60℃, -70℃; high options 150℃, 180℃, 200℃.
• Humidity range: selectable 20%–98% R.H., 10%–98% R.H., or 5%–98% R.H.
• Control: PID control with touch-screen interface; control accuracy ±0.5℃ and ±2.5% R.H. (depending on configuration).
• Construction: inner chamber SUS 304# stainless steel; outer cabinet stainless steel or cold-rolled steel with paint; high-density heat-resistant insulation.
• Cooling: air or water cooling; single-segment compressor (to -40℃) or double-segment compressor (to -70℃).
• Safety & protection: compressor overload, high/low voltage protection, over-humidity and over-temperature alarms, fuse-free switch and water shortage warning.
• Optional accessories: access ports, inner door with operation hole, additional shelves, recorder, demineralizer water filter, dry air purge, explosion-proof/battery-safety options.
• Connectivity & data: USB, remote access, multilingual display and alarm history for logging and troubleshooting.

Technical specifications (summary)
Internal dimensions WxHxD (mm): 400x500x400 | 500x600x500 | 600x750x500 | 600x850x800 | 1000x1000x800 | 1000x1000x1000
External dimensions WxHxD (mm): 950x1650x950 | 1050x1750x1050 | 1200x1900x1150 | 1200x1950x1350 | 1600x2000x1450 | 1600x2100x1450
Analytic accuracy / uniformity: 0.1℃; 0.1% R.H. / ±2.0℃; ±3.0% R.H.
Control accuracy: ±0.5℃; ±2.5% R.H.
Temperature rate: rise approx. 0.1–3.0℃/min; fall approx. 0.1–1.5℃/min (min. 1.5℃/min available as special option)
Material: inner SUS 304# stainless steel; outer stainless or painted cold-rolled steel; high-density insulation
Cooling system: air or water cooling; single/double-segment compressors
Compressor brands (standard options): Tecumseh or Bitzer
Power: AC 220V 1ph 3 lines, 50/60 Hz or AC 380V 3ph 5 lines, 50/60 Hz
Approx. weight (kg): 150 | 180 | 250 | 320 | 400 | 450

Key Product Advantages

• Stable, repeatable test conditions via PID control and touch-screen interface.
• Energy-efficient refrigeration with electronic expansion valve and high-density insulation.
• Corrosion-resistant SUS 304 interior for easier cleaning and long service life.
• Flexible humidity control options to meet diverse test requirements.
• Comprehensive safety protections and configurable battery/explosion-safe options.
• Data logging and connectivity for reporting, audit trails and remote monitoring.
• After-sales support including one-year parts replacement and ISO 17025 calibration options.

Common Test Standards

• IEC 60068-2-1 — Cold
• IEC 60068-2-2 — Dry Heat
• IEC 60068-2-78 — Damp Heat, Steady State
• IEC 60068-2-30 — Damp Heat, Cyclic
• ISO 139 — Standard Atmospheres for Conditioning and Testing
• ASTM D1776 — Conditioning and Testing Textiles
• MIL-STD-810 — Environmental Engineering Considerations and Laboratory Tests
• GB/T 2423 — Environmental Testing for Electric and Electronic Products
