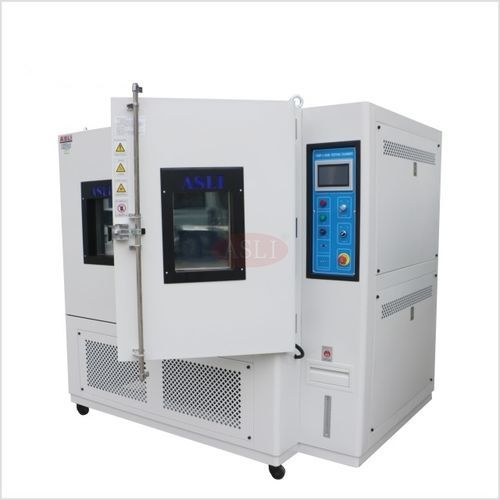

Thermostatic test chamber TH series

climatichumiditytemperature

Stability Chambers TH series for pharmaceutical stability testing
ASLI TH-series constant temperature and humidity chambers deliver precise environmental control for ICH-compliant stability studies, accelerated aging, temperature cycling and reliability testing. Available in pre-engineered TH-80 to TH-1000 models or custom configurations, these chambers offer selectable temperature and humidity ranges, comprehensive safety protections, data logging and energy-efficient refrigeration.

Applications

• Pharmaceutical stability testing — long-term and accelerated ICH studies for drug substances, drug products and excipients
• Biopharma & biotech — stability and shelf-life evaluations for biologics and intermediates
• Medical devices — environmental conditioning and reliability tests for devices and components
• Analytical & QC laboratories — controlled environments for method validation and sample conditioning
• Packaging & cold chain validation — damp heat and temperature cycling for primary and secondary packaging
• CROs and stability facilities — standardized test conditions for regulatory submissions
• Universities & research institutes — reproducible environmental testing for materials and formulations

Technical specifications (summary)
Model / TH-80 / TH-150 / TH-225 / TH-408 / TH-800 / TH-1000
Internal Dimension WxHxD (mm) / 400x500x400 / 500x600x500 / 600x750x500 / 600x850x800 / 1000x1000x800 / 1000x1000x1000
External Dimension WxHxD (mm) / 950x1650x950 / 1050x1750x1050 / 1200x1900x1150 / 1200x1950x1350 / 1600x2000x1450 / 1600x2100x1450
Temperature Range / Tmin options: 25℃, 0℃, -20℃, -40℃, -60℃, -70℃; Tmax options: 150℃, 180℃, 200℃
Humidity Range / Optional: 20%~98% R.H., 10%~98% R.H., 5%~98% R.H.
Analytic Accuracy & Distribution Uniformity / 0.1℃; 0.1% R.H. / ±2.0℃; ±3.0% R.H.
Control Accuracy / ±0.5℃; ±2.5% R.H.
Temperature Rising / Falling Speed Rate / Rising approx. 0.1~3.0℃/min; Falling approx. 0.1~1.5℃/min (1.5℃/min falling rate available as special option)
Material / Inner box: SUS 304# stainless steel; Outer box: stainless steel or cold-rolled steel with paint; High-density foam insulation resistant to high temperatures and common reagents
Cooling System / Air-cooled or water-cooled; single-segment compressor for -40℃, double-segment compressor for -70℃
Protection Devices / Fuse-free switch, compressor overload protection, high/low pressure coolant protection, over-humidity and over-temperature protection, fuses, fault warning system, water-shortage warning protection
Optional Accessories / Inner observation/access port, Recorder, Water Purifier, Dehumidifier, shelves, casters, cable ports
Compressor / French Tecumseh or German Bitzer options
Power / AC 220V 1ph 3 lines, 50/60 Hz | AC 380V 3ph 5 lines, 50/60 Hz
Approx. Weight (Kg) / TH-80: 150; TH-150: 180; TH-225: 250; TH-408: 320; TH-800: 400; TH-1000: 450

Common test standards

• ICH Q1A — Stability testing of new drug substances and products
• IEC 60068-2-1 — Cold
• IEC 60068-2-2 — Dry Heat
• IEC 60068-2-78 — Damp Heat, Steady State
• IEC 60068-2-30 — Damp Heat, Cyclic
• ISO 139 — Standard atmospheres for conditioning and testing
• ASTM D1776 — Conditioning and testing textiles (packaging)
• MIL-STD-810 — Environmental engineering considerations and laboratory tests
• GB/T 2423 — Environmental testing for electric and electronic products

Key product advantages

• Precise, repeatable control using PID algorithms and touchscreen interface: control accuracy ±0.5℃ and ±2.5% R.H.
• Energy-efficient refrigeration with electronic expansion valve and high-density insulation to reduce operational cost
• Corrosion-resistant SUS 304 stainless interior for easy cleaning and compliant laboratory hygiene
• Flexible humidity ranges to match ICH and stability protocols
• Comprehensive safety protections including over-temperature, over-humidity, compressor overload and water-shortage alarms
• Data logging and connectivity: USB, remote access options, multilingual display and alarm history for traceability

Features / technical data

• Series: TH series (models TH-80, TH-150, TH-225, TH-408, TH-800, TH-1000)
• Temperature range: selectable lows 25℃ / 0℃ / -20℃ / -40℃ / -60℃ / -70℃; highs 150℃ / 180℃ / 200℃
• Humidity range: optional 20–98% / 10–98% / 5–98% R.H.
• Control & analytic accuracy: control ±0.5℃; ±2.5% R.H.; analytic 0.1℃; 0.1% R.H.; uniformity ±2.0℃; ±3.0% R.H.
• Temperature ramp rates: rising approx. 0.1–3.0℃/min; falling approx. 0.1–1.5℃/min (faster falling rate optional)
• Construction: SUS 304 inner chamber; outer stainless or painted cold-rolled steel; high-density insulating foam
• Cooling: air or water cooling; single/double segment compressors for low-temperature options
• Safety & protections: multiple electrical and operational protections plus fault warning system
• Accessories & features: inner observation/access port, recorder, water purifier, dehumidifier, shelves, casters, cable ports
• Power options: AC 220V 1ph or AC 380V 3ph (50/60 Hz)
• Approx. weights by model provided above
