Climate chamber TH series

thermostatictemperaturehumidity

Description
The TH series humidity‑freeze test chamber is a climatic test system designed for accelerated aging and qualification of photovoltaic (PV) modules according to IEC 61215 protocols. It reproduces alternating high humidity/high temperature and sub‑zero conditions to evaluate module resistance to moisture ingress and thermal stress. The chamber is suitable for crystalline silicon, thin‑film and concentrator PV modules, and for R&D, production control and third‑party certification.

Overview
Designed to support IEC 61215 Humidity‑Freeze (MQT 12), Thermal Cycling (MQT 11) and Damp Heat (MQT 13) sequences, the chamber cycles modules between 85°C/85% R.H. and −40°C for 10 complete cycles (or per applicable profile). It accelerates lifetime assessment to predict outdoor durability over multiple decades and is aimed at manufacturers, testing laboratories and research institutes.

Product Details
Tests performed in accordance with IEC 61215:2005 and related standards. PV modules are subjected to repeated cycles between 85°C at 85% R.H. and −40°C in a closed climatic space. The protocol assesses moisture penetration, thermal mismatch and mechanical integrity after defined cycle counts.

Supported Tests / Features

• Damp Heat (IEC 61215 MQT 13)
• Thermal Cycling (IEC 61215 MQT 11)
• Humidity‑Freeze Test (IEC 61215 MQT 12)

Applications
Commonly used across the photovoltaic supply chain and related industries for environmental qualification and reliability verification.

• PV module manufacturing — humidity‑freeze, thermal cycling and damp heat qualification for crystalline and thin‑film modules
• Solar cell R&D — design verification and reliability assessment
• New energy & energy storage — environmental aging of components
• Third‑party test labs — standard‑compliant conditioning for certification
• Aerospace & defense — environmental stress screening for avionics and sensors
• Automotive & EV — reliability testing of electronics under thermal cycling and humidity
• Electronics & semiconductors — humidity and stability testing for PCBs, ICs, connectors
• Universities & research institutes — controlled test conditions for materials research

Common Test Standards Applicable

• IEC 61215 — PV module design qualification and type approval
• IEC 61646 — Thin‑film PV module qualification
• UL 1703 — Flat‑plate photovoltaic modules (where applicable)
• IEC 62108 — Concentrator PV modules
• IEEE 1513 — Qualification recommendations for PV modules
• IEC 61730 — PV module safety qualification
• IEC 61215‑2016 — DH 4.13, TC 4.11, HF 4.12
• IEC 61730‑2016 — MST53, MST51, MST52
• GB/T 2423.1 / 2423.2 — Low / High temperature tests
• GJB 150.3 / 150.4 — High / Low temperature tests
• IEC68‑2‑1 / IEC68‑2‑2 — Cold / Dry heat
• GB 11158 / GB10586‑1 — Chamber test conditions

Key Product Advantages

• IEC 61215 compliant — supports Humidity‑Freeze (MQT12), Thermal Cycling (MQT11) and Damp Heat (MQT13)
• Precise temperature & humidity control — PID regulation with 7" touch screen; control accuracy ±0.5°C and ±2.5% R.H.
• Wide temperature range — selectable Tmin down to −70°C and Tmax up to 200°C (options)
• Efficient refrigeration — electronic expansion valve and high‑density insulation
• Corrosion‑resistant interior — SUS 304 stainless steel
• Comprehensive safety protections — over‑temperature, over‑humidity, compressor overload and water‑shortage alarms

Product Gallery (selected images)

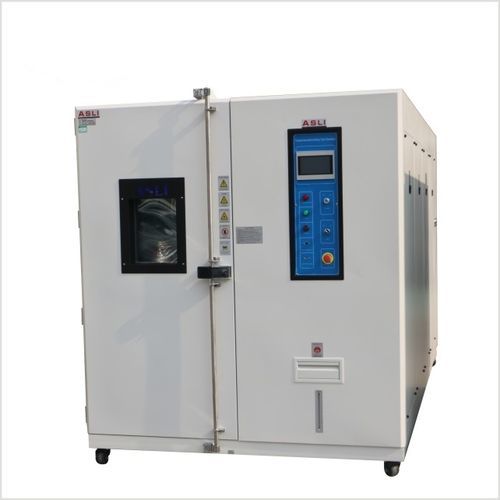

Images typically show chamber interior, control panel, humidity and water systems, refrigeration pack, access ports, shelving and safety devices.

Caractéristiques / Spécifications techniques

• Model series: TH series (examples: TH‑80, TH‑150, TH‑225, TH‑408, TH‑800, TH‑1000)
• Internal dimensions (W×H×D mm): TH‑80: 400×500×400; TH‑150: 500×600×500; TH‑225: 600×750×500; TH‑408: 600×850×800; TH‑800: 1000×1000×800; TH‑1000: 1000×1000×1000
• External dimensions (W×H×D mm): TH‑80: 950×1650×950; TH‑150: 1050×1750×1050; TH‑225: 1200×1900×1150; TH‑408: 1200×1950×1350; TH‑800: 1600×2000×1450; TH‑1000: 1600×2100×1450
• Temperature range: Tmin options A: 25°C; B: 0°C; C: −20°C; D: −40°C; E: −60°C; F: −70°C. Tmax options: 150°C, 180°C, 200°C
• Humidity range: optional 20%–98% R.H. / 10%–98% R.H. / 5%–98% R.H.
• Analytic accuracy / distribution uniformity: 0.1°C; 0.1% R.H. / ±2.0°C; ±3.0% R.H.
• Control accuracy: ±0.5°C; ±2.5% R.H.
• Temperature change rate: heating approx. 0.1–3.0°C/min; cooling approx. 0.1–1.5°C/min (faster cooling options available)
• Material: inner chamber SUS 304 stainless steel; outer casing stainless steel or painted cold‑rolled steel; high‑density, high‑temperature resistant insulation
• Cooling system: air or water cooled; single‑stage compressor (down to −40°C), two‑stage compressor (down to −70°C)
• Protection devices: fuse‑free switch, compressor overload protection, high/low pressure coolant protection, over‑humidity and over‑temperature protection, alarms and water shortage warning
• Optional accessories: inner door with service port, recorder, water purifier, dehumidifier
• Compressor brands: Tecumseh (France) or Bitzer (Germany)
• Power: AC 220V 1ph 3‑wire, 50/60 Hz | AC 380V 3ph 5‑wire, 50/60 Hz
• Approx. weight (kg): TH‑80: 150; TH‑150: 180; TH‑225: 250; TH‑408: 320; TH‑800: 400; TH‑1000: 450
