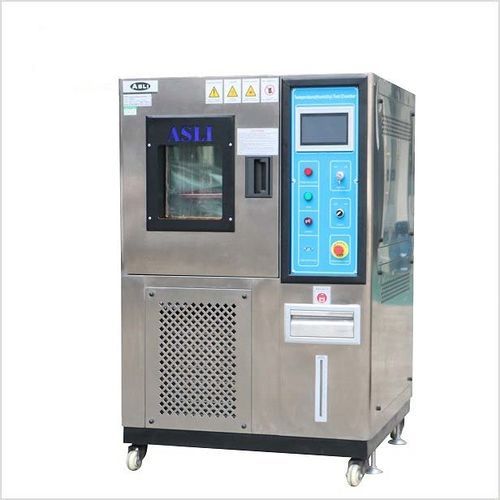

Climate chamber TH series

thermostatichumiditytemperature

Overview
This stainless-steel environmental test chamber (TH series, models TH-80 to TH-1000) provides controlled temperature and humidity conditions for repeatable environmental testing. It is suitable for industrial and laboratory use where precise thermal and humidity profiles are required for R&D, quality control and qualification testing.

Key Features

• PID controller with 7" touchscreen for programmable profiles and stable control
• Control accuracy: ±0.5℃; ±2.5% R.H.
• Analytic accuracy / distribution uniformity: 0.1℃; 0.1% R.H. / ±2.0℃; ±3.0% R.H.
• Energy-efficient refrigeration with electronic expansion valve and high-density insulation
• Inner chamber: SUS 304# stainless steel; outer cabinet: stainless steel or painted cold-rolled steel
• Humidity options selectable: 20–98%, 10–98% or 5–98% R.H.
• Comprehensive protections: over-temperature, over-humidity, compressor overload, water-shortage alarms
• Optional accessories: access ports, inner door with operation hole, recorder, water purifier, dehumidifier, explosion-proof and battery-safety configurations

Applications

• Aerospace & Defense — environmental stress screening for avionics, sensors and aerospace components
• Automotive & EV — reliability and battery testing (explosion-proof configurations available)
• Electronics & Semiconductors — humidity and thermal stability tests for PCBs, ICs and connectors
• LED & Lighting — thermal cycling and moisture resistance validation
• Packaging & Transport — damp heat and temperature cycling for packaged goods
• Photovoltaics & New Energy — testing of solar cells, modules and energy storage components
• Materials Research — accelerated ageing and environmental stability evaluation of materials and coatings
• Universities & Testing Labs — controlled test conditions for research, development and certification

Common Test Standards

• IEC 60068-2-1 — Cold
• IEC 60068-2-2 — Dry Heat
• IEC 60068-2-78 — Damp Heat, Steady State
• IEC 60068-2-30 — Damp Heat, Cyclic
• ISO 139 — Standard Atmospheres for Conditioning and Testing
• ASTM D1776 — Conditioning and Testing Textiles
• MIL-STD-810 — Environmental Engineering Considerations and Laboratory Tests
• GB/T 2423 — Environmental Testing for Electric and Electronic Products

Technical Specifications
Model | TH-80 | TH-150 | TH-225 | TH-408 | TH-800 | TH-1000
Internal Dimension (WxHxD mm) | 400x500x400 | 500x600x500 | 600x750x500 | 600x850x800 | 1000x1000x800 | 1000x1000x1000
External Dimension (WxHxD mm) | 950x1650x950 | 1050x1750x1050 | 1200x1900x1150 | 1200x1950x1350 | 1600x2000x1450 | 1600x2100x1450
Temperature Range | Minimum options: 25℃ / 0℃ / -20℃ / -40℃ / -60℃ / -70℃; Maximum options: 150℃, 180℃, 200℃
Humidity Range | Optional: 20%~98% R.H. / 10%~98% R.H. / 5%~98% R.H.
Analytic Accuracy / Distribution Uniformity | 0.1℃; 0.1% R.H. / ±2.0℃; ±3.0% R.H.
Control Accuracy | ±0.5℃; ±2.5% R.H.
Temperature Change Rate | Rising approx. 0.1~3.0℃/min; Falling approx. 0.1~1.5℃/min (special option: falling min. 1.5℃/min)
Material | Inner box: SUS 304# stainless steel; Outer box: stainless steel or cold-rolled steel with paint; Insulation: high-temperature resistant, high-density foam
Cooling System | Air cooling or water cooling; single-segment compressor for -40℃; double-segment compressor for -70℃
Protection Devices | Fuse-free switch, compressor overload protection, high/low voltage coolant protection, over-humidity and over-temperature protection, fuses, fault warning system, water-shortage warning
Optional Accessories | Inner door with operation hole, recorder, water purifier, dehumidifier, explosion-proof and battery safety options
Compressor | Tecumseh or Bitzer
Power | AC 220V 1ph 3 lines, 50/60 Hz or AC 380V 3ph 5 lines, 50/60 Hz
Approx. Weight (Kg) | 150 | 180 | 250 | 320 | 400 | 450

Characteristics / Technical Notes

• Series: TH series (models TH-80 to TH-1000)
• Standard interfaces: USB, remote data access, multilingual display, alarm history
• Configurable for specific test profiles and safety requirements (explosion-proof, battery-safe)
• Suitable for laboratory qualification, production screening and R&D endurance testing
