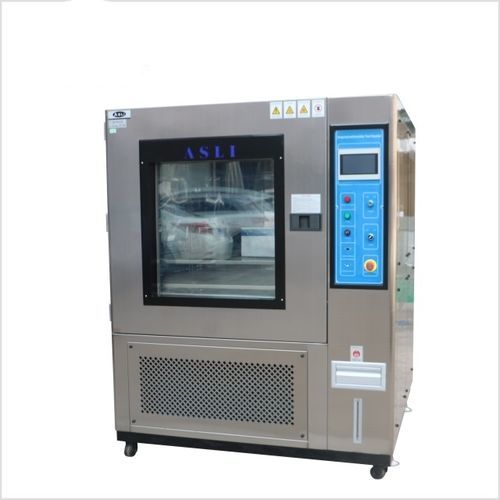

Climate chamber TH series

temperaturehumidityenvironmental

Product overview
Programmable constant climatic test cabinet for performance and reliability testing of aerospace, maritime, defense, automotive, electronics, instrumentation, materials and other engineered products. Large observing window enables visual monitoring of specimens during tests without opening the door. Standard and custom TH series models include temperature and humidity control, programmable color LCD touch controller with multi-language interface, USB and Ethernet connectivity, built-in water tank, adjustable/removable shelves, casters, cable port and comprehensive safety protections. CE compliance available depending on configuration.

Features

• Standard and custom TH series models
• Temperature control and display unit
• Humidity control and display unit (optional)
• Programmable color LCD touch screen controller
• Multi-language interface
• USB and Ethernet connectivity
• Casters, sample shelf and cable port as standard
• Built-in water tank
• Adjustable and removable sample shelves
• Comprehensive safety protection system
• Some standard models available from stock
• CE mark compliance available

Applications & Keywords

• Temperature and Humidity Test Chamber
• Material Testing
• Environmental / Climatic Test Chamber
• Environmental Test Chamber
• Reliability testing for aerospace, automotive, electronics, LED & lighting, photovoltaics, packaging, materials research, universities and testing labs

Technical Specifications (table)
Models: TH-80, TH-150, TH-225, TH-408, TH-800, TH-1000. Internal dimensions WxHxD (mm): 400x500x400 | 500x600x500 | 600x750x500 | 600x850x800 | 1000x1000x800 | 1000x1000x1000. External dimensions WxHxD (mm): 950x1650x950 | 1050x1750x1050 | 1200x1900x1150 | 1200x1950x1350 | 1600x2000x1450 | 1600x2100x1450. Temperature range: Tmin options: 25°C, 0°C, -20°C, -40°C, -60°C, -70°C; Tmax options: 150°C, 180°C, 200°C. Humidity range: optional 20%~98% R.H. / 10%~98% R.H. / 5%~98% R.H. Analytic accuracy / distribution uniformity: 0.1°C; 0.1% R.H. / ±2.0°C; ±3.0% R.H. Control accuracy: ±0.5°C; ±2.5% R.H. Temperature change rate: rise approx. 0.1–3.0°C/min; fall approx. 0.1–1.5°C/min (special option: min. 1.5°C/min). Materials: inner chamber SUS 304 stainless steel; outer box stainless steel or cold-rolled steel with paint coating; high-density foam insulation. Cooling: air or water cooling; single-segment compressor for -40°C; double-segment compressor for -70°C. Protection devices: fuse-free switch, compressor overload protection, high/low voltage coolant protection, over-humidity and over-temperature protection, fuses, fault warning, low water storage warning. Optional accessories: inner door with operation hole, recorder, water purifier, dehumidifier. Compressor brands: Tecumseh or Bitzer. Power: AC 220V 1ph 3 lines, 50/60 Hz | AC 380V 3ph 5 lines, 50/60 Hz. Approx. weight (kg): TH-80 150 | TH-150 180 | TH-225 250 | TH-408 320 | TH-800 400 | TH-1000 450.
