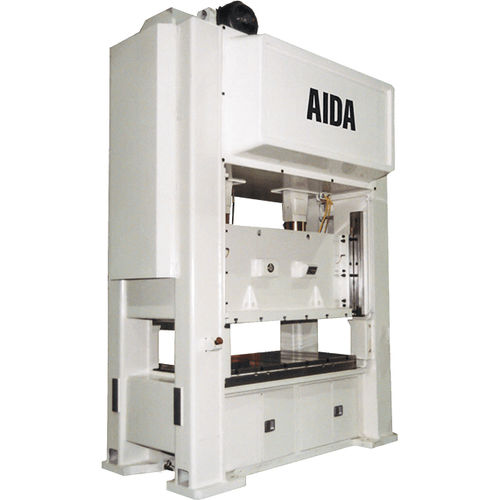

Mechanical press NSU series
stampingframestraight-side

mechanical press
mechanical press
mechanical press
mechanical press
mechanical press
mechanical press
mechanical press
mechanical press
mechanical press
mechanical press
mechanical press
Add to favorites
Compare this product


Characteristics

Operation
mechanical
Function
stamping
Structure
frame, straight-side
Control
PLC-controlled
Force

2,000 kN, 3,000 kN, 4,000 kN

Opening

565 mm, 610 mm, 715 mm
(22 in, 24 in, 28 in)

Stroke

203 mm, 254 mm, 304 mm
(8 in, 10 in, 12 in)

Description

Same quality and engineering as our other stamping presses, just a few less bells and whistles. 200 to 400 metric ton rating (10% more capacity right out of the box). Designed and constructed for easy, low-cost maintenance. Eccentric gear design ideal for high performance dimensional work - appliance, HVAC, furniture, etc. Rigid, unitized frame for rock-solid durability. Ball type slide connection. AIDA's famous Hydraulic Overload Protection is standard. 0.001"/ft. bed and slide deflection rating under full load. ACCESS Control standard, or WINTRISS SmartPAC and the Link Systems Omni Link 5000 are available. Features AC Variable Motor Combination Clutch & Brake 8 Point Slide Guides Massive One-Piece Fabricated Steel Frame Bed & Slide Designed for Maximum Deflection of 0.001''/ft under full load Eccentric Gear Drive Self-Contained Slide Counter-Balance AIDA Ball Socket Connections Hydraulic Overload Protection PLC Based Control
