Industrial gas cylinder LASAL™ P51

gasnitrogenCO2

Description
LASAL is Air Liquide's brand dedicated to laser applications.

Applications

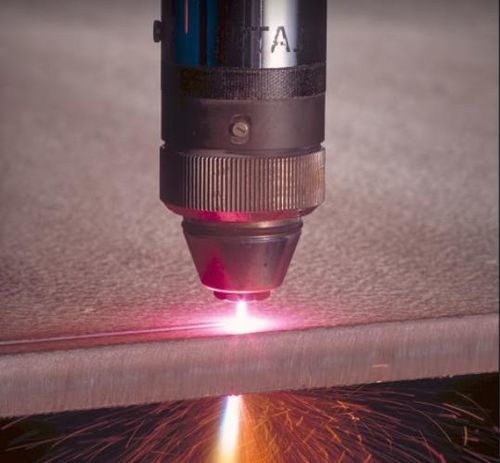

• Cavity gas for CO2 lasers

Table - Technical specifications (excerpt)
Reference: I6590L50R2A001
Variant name: LASAL P51 Bottle 50L 200 bar
Pressure: 200 bar
Packaging type and size: 50L
Valve cap: Standard
Capacity: 9.4 m³
Physical state: Gaseous
Relative density (gas): Lighter than air
Valve connection: AFNOR C (21.7 x 1.814 SI - right-hand male)
Single molecule: MIX
Components (% vol. abs): He; CO2 3.4% ± 0.5%; N2 15.6% ± 1%
Impurities (see product data sheet for full details): H2O (5 bar) ≤ 5; CnHm ≤ 1
Color: Colorless
Odor: Odorless

Safety & transport (summary)
Hazards: Contains a gas under pressure; may explode if heated. Asphyxiant at high concentration.
Flammability range: Non-flammable
Official designation: Compressed gas
UN No.: 1956
ADR class: 2
Classification code: 1A

Characteristics / technical specifications

• Product reference: I6590L50R2A001
• Variant designation: LASAL P51 Bottle 50L 200 bar
• Nominal pressure: 200 bar
• Packaging type and size: 50L bottle
• Valve cap: Standard
• Bottle capacity: 9.4 m³
• Physical state: Gaseous
• Relative density: Lighter than air
• Valve connection: AFNOR C (21.7 x 1.814 SI - right-hand male)
• Nature: Mixture (MIX)
• Volumetric components: Helium (He); Carbon dioxide (CO2) 3.4% ± 0.5%; Nitrogen (N2) 15.6% ± 1%
• Impurities: H2O (5 bar) ≤ 5; CnHm ≤ 1 (see data sheet for full details)
• Color: Colorless
• Odor: Odorless
• Transport / regulation: UN No. 1956, ADR class 2, Classification code 1A
