Industrial gas cylinder LASAL™ 86

gasnitrogenCO2

Description
LASAL™ is Air Liquide's brand dedicated to laser applications. LASAL™ 86 is a gas mixture formulated for CO2 laser cavities: N2 25 % ±1.25 %, CO2 5 % ±0.25 %, balance He.

Product summary
Composition: N2 25 % ±1.25 %; CO2 5 % ±0.25 %; He balance.
Packaging: Cylinder 50 L, 200 bar. Usable capacity: 9.6 m³ (nominal). Valve connection: RPV.

Applications

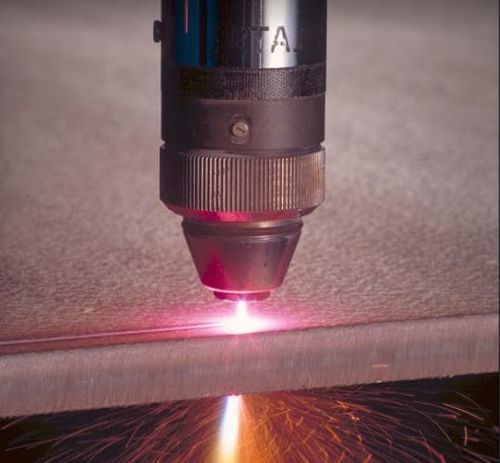

• Cavity gas for industrial CO2 lasers and CO2 laser resonators

TECHNICAL SPECIFICATIONS (excerpt)
Reference: I6686L50R2A001
Variation name: LASAL™ 86 Cylinder 50L 200 bar
State: gaseous
Relative density: lighter or similar to air
Single molecule: MIX
Components (% vol. abs): He; CO2 5 % ±0.25 %; N2 25 % ±1.25 %.
Impurities (see product datasheet for full details): H2O (5 bar) ≤ 5 ppm; CnHm ≤ 1 ppm.

Safety
Hazards: Risk of asphyxiation at high concentrations. Non-flammable mixture. Follow site safety procedures and consult the safety data sheet (SDS).

Transport
Proper shipping name: Compressed gas
UN number: 1956
ADR class: 2
Classification code: 1A
ADR pictograms: compressed gas / non-flammable (see SDS for details)

Characteristics / technical specifications

• Reference: I6686L50R2A001
• Variation name: LASAL™ 86 Cylinder 50L 200 bar
• Pressure: 200 bar
• Pack type & size: 50 L cylinder
• Valve cap: Standard
• Capacity: 9.6 m³ (nominal)
• State: gaseous
• Relative density: lighter or similar to air
• Valve connection: RPV
• Single molecule: MIX
• Components (% vol. abs): He; CO2 5 % ±0.25 %; N2 25 % ±1.25 %
• Impurities: H2O (5 bar) ≤ 5 ppm; CnHm ≤ 1 ppm
• Color: colorless
• Odor: odorless
