Industrial gas cylinder LASAL™ 201

nitrogenO2CO2

Presentation
LASAL is Air Liquide's brand dedicated to laser applications.

Composition
3% O2 + 3% Xe + 4% CO2 + 6% CO + 19% N2 / He

Applications

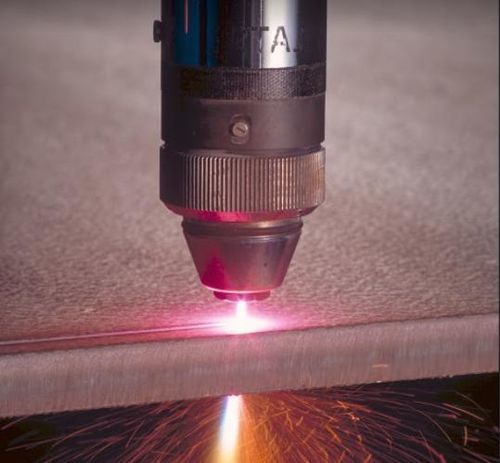

• Cavity gas for CO2 lasers

Specifications (excerpt)
Reference: I6750S10R5A001
Variation name: LASAL 201 Bottle 10L 150 bar
Pressure: 150 bar
Packaging type and size: 10L
Cap: Standard
Capacity: 1.5 m³
Physical state: gaseous
Relative density (gas): Lighter than air
Molecular weight: Mixed
Valve connection: AFNOR E (21.7 x 1.814 SI - left-hand male)
Single molecule: MIX
Components (% Vol. abs): He; O2 3% ± 0.3%; Xe 3% ± 0.3%; CO2 4% ± 0.4%; CO 6% ± 0.6%; N2 19% ± 0.95%
Impurities (see product data sheet for full details): H2O (5 bar) ≤ 2.2; CnHm ≤ 0.3; H2 ≤ 0.4; Ar ≤ 2.4; Kr ≤ 1.6; Ne ≤ 0.4; Particles > 0.1 µm ≤ 500000/m³; Particles > 1.0 µm ≤ 5000/m³
Color: colorless
Odor: odorless

Safety
Hazards: Causes skin irritation.
Flammability range: Non-flammable

Transport
Proper shipping name: Compressed gas cylinders
UN number: 1956
ADR class: 2
Classification code: 1A

Technical features / specifications

• Reference: I6750S10R5A001
• Variation name: LASAL 201 Bottle 10L 150 bar
• Pressure: 150 bar
• Packaging type and size: 10L
• Cap: Standard
• Capacity: 1.5 m³
• Physical state: gaseous
• Relative density (gas): Lighter than air
• Molecular weight: Mixed
• Valve connection: AFNOR E (21.7 x 1.814 SI - left-hand male)
• Single molecule: MIX
• Components (% Vol. abs): He; O2 3% ± 0.3%; Xe 3% ± 0.3%; CO2 4% ± 0.4%; CO 6% ± 0.6%; N2 19% ± 0.95%
• Main impurities: H2O (5 bar) ≤ 2.2; CnHm ≤ 0.3; H2 ≤ 0.4; Ar ≤ 2.4; Kr ≤ 1.6; Ne ≤ 0.4; Particles > 0.1 µm ≤ 500000/m³; Particles > 1.0 µm ≤ 5000/m³
• Color: colorless
• Odor: odorless
