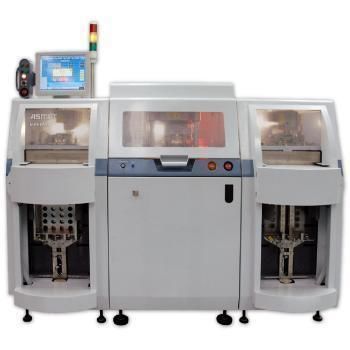

Cutting forming machine MPHENIX

twin-headfor metalfor stamped parts

Product overview
The MPHENIX Series is an automatic trim and form system engineered for high-density lead frame processing and high-volume production. The system delivers up to 5,000 tonnage force and integrates an extra-large dual input/output magazine, high-speed picking, twin-press capability and a high-speed eccentric cam-follower drive to ensure rapid trim/form cycles. Its modular construction allows configuration for varied applications. The system also incorporates an extended MTBA material handling solution, compatibility with multiple vision inspection systems and closed-loop monitoring via Tool Predictive Quality Management (Tool-PQM).

Features

• Cost-efficient singulation for high-density discrete packages
• 240 mm tool width for increased process flexibility
• Modular design for straightforward integration and customization
• Optional integration with various vision inspection systems

Technical specifications

• Tonnage force: up to 5,000 tonnage force
• Tool width: 240 mm
• Input/output: extra-large dual input/output magazine system
• Picking: high-speed picking system
• Pressing: twin-pressing capability
• Driving mechanism: high-speed eccentric cam-follower
• Operation speed: fast trim/form cycle capability
• Construction: modular, configurable for various applications
• Material handling: extended MTBA extra-large material handling system
• Vision: option to equip with various vision systems
• Monitoring: closed-loop monitoring (Tool Predictive Quality Management, Tool-PQM)
