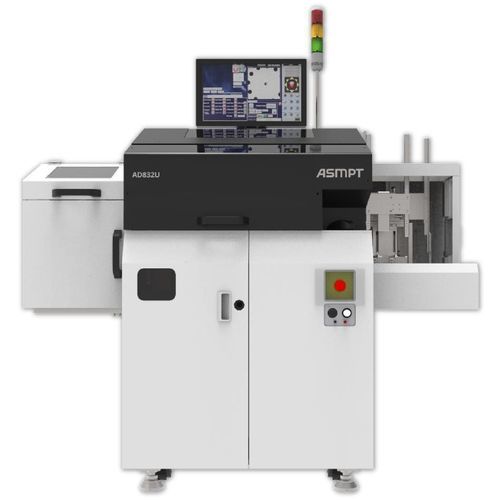

Eutectic die bonder AD832Uepoxyautomatedfor the semiconductor industry
Add to favorites
Compare this product
Characteristics
- Technology
- epoxy, eutectic
- Operational mode
- automated
- Applications
- for the semiconductor industry, for wafers
- Other characteristics
- high-accuracy, configurable
- Placement accuracy
Max.: 80 µm
Min.: 0 µm
Description
Product overview
AD832U is an automatic eutectic die bonder delivering precise placement for a wide range of horizontal small discrete packages (examples: SOD323, SOD923, SOT113). With a 300 x 100 mm handling area and support for wafers up to 8", the AD832U is engineered for high-throughput eutectic die bonding in modern production lines.
Key features
Technical specifications
Applications and benefits
AD832U is an automatic eutectic die bonder delivering precise placement for a wide range of horizontal small discrete packages (examples: SOD323, SOD923, SOT113). With a 300 x 100 mm handling area and support for wafers up to 8", the AD832U is engineered for high-throughput eutectic die bonding in modern production lines.
Key features
- Automatic eutectic die bonding for horizontal small packages
- Handling area: 300 x 100 mm
- Supports wafer sizes up to 8"
- Placement accuracy and cycle-time optimized for throughput
- Capable of high-density lead frame handling
- Optional modules: multi-angle bonding; flux eutectic and epoxy bonding
Technical specifications
- Type: Automatic eutectic die bonder
- Package compatibility: horizontal small discrete packages (SOD323, SOD923, SOT113, etc.)
- Handling capability: 300 x 100 mm
- Maximum wafer size: up to 8"
- Performance: precise placement suitable for high-volume production
- Optional modules: multi-angle bonding; flux eutectic and epoxy bonding
- Suitable for: high-density lead frame handling
Applications and benefits
- Mass production of discrete semiconductor packages
- Integration into assembly lines requiring compact-package eutectic bonding
- Flexible configuration with optional modules to meet specific process requirements
