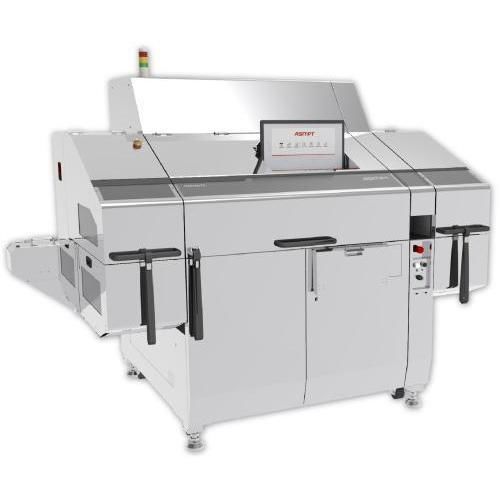

Die-attach die bonder INFINITEepoxyautomatedfor the semiconductor industry
Add to favorites
Compare this product
Characteristics
- Technology
- epoxy, for die-attach
- Operational mode
- automated
- Applications
- for the semiconductor industry, for wafers
- Other characteristics
- high-accuracy, with optical alignment system
Description
Product overview
The INFINITE is a next-generation 12” automatic die bonder designed for high-precision placement and stable dispensing. It integrates dedicated technologies for epoxy control, level sensing, motion control and fast vision inspection. The system supports 12” wafer handling, high-density lead frames (example: 300 × 100 mm), optional uplook optics to enhance inspection and a universal work holder to accommodate various package types.
Features
Additional iFeatures and capabilities
Technical specifications
The INFINITE is a next-generation 12” automatic die bonder designed for high-precision placement and stable dispensing. It integrates dedicated technologies for epoxy control, level sensing, motion control and fast vision inspection. The system supports 12” wafer handling, high-density lead frames (example: 300 × 100 mm), optional uplook optics to enhance inspection and a universal work holder to accommodate various package types.
Features
- High throughput for production environments
- Excellent XY placement accuracy
- High-density lead-frame handling (example 300 × 100 mm)
- Optional uplook optics to improve bonding and inspection accuracy
- Integrated iFeatures: iTouch, iSense, iDispense
Additional iFeatures and capabilities
- iDispense: epoxy tailing control
- iSense: precise level measurement
- iTouch: bonding motion control for thin die and special epoxies
- iBalance: vibration protection for dispensing and bonding stability
- iFlash: fast vision inspection technology
- iFlat: warpage handling
Technical specifications
- Wafer handling: 12” (12-inch)
- Placement accuracy: excellent XY placement accuracy
- Lead-frame handling: high-density lead-frame handling, example dimension 300 × 100 mm
- Optics: uplook optics available (optional) to enhance bonding/inspection accuracy
- Work holder: universal design supporting various package types
- Integrated technologies: iDispense, iSense, iTouch, iBalance, iFlash, iFlat
