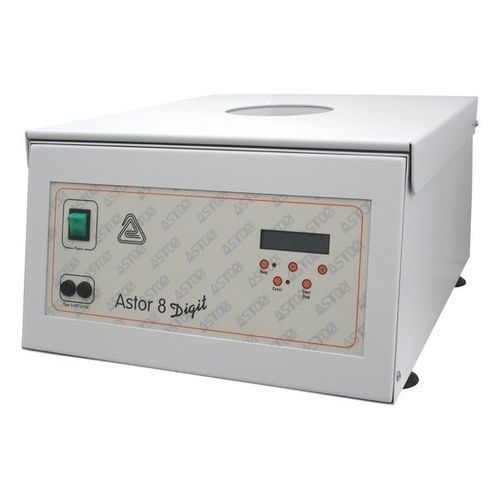

Dairy analysis centrifuge Astor 8 Digit

laboratoryfor the food industrybenchtop

Product overview
The Astor 8 Digit Gerber centrifuge is a fully digital unit designed for quantitative determination of fat in milk and dairy samples according to the Gerber method. It accepts up to 8 butyrometers and integrates preset heating and safety controls to ensure reproducible results in laboratory and on-site dairy-testing environments.

Technical features

• External anti-acid painted metal structure with lid inspection window
• Transparent rounded lid window for chamber inspection during centrifugation
• Lid safety block when rotor is in motion
• Electronic motor brake to reduce stopping time
• Digital display indicating active heating, lid status, set time, countdown, brake activation and end of cycle
• Digital timer: 0–60 minutes or continuous cycle
• Backlit on/off switch and separate keys for lid release and heating control
• Colored LEDs: temperature reached (violet) and lid unlocked (green)
• Capacity: max. 8 butyrometers
• Supplied with 8 anti-acid, easy-to-remove/clean adapters for butyrometers
• Preselected temperature: 65°C (Gerber method)
• Pre-heating time: up to 20 minutes
• Designed for uniform temperature distribution within tubes
• Centrifugal force: 350 g ± 50 g (Gerber method)
• Dimensions (WxDxH): 49 x 41 x 26 cm; Weight: 18 kg
• Power supply: 230 V or 115 V, 50/60 Hz
• Max. power consumption: 840 W

Characteristics / Technical specifications

• Model: Astor 8 Digit
• Brand: Astor
• Capacity: max. 8 butyrometers
• Adapters: 8 anti-acid, easy-to-dismount and clean adapters for butyrometers
• Preselected temperature: 65°C (Gerber method)
• Pre-heating time: up to 20 minutes
• Centrifugal force: 350 g ± 50 g (Gerber method)
• Timer: digital, 0–60 minutes or continuous
• Display: digital display indicating heating, lid status, set time, countdown, brake, end of cycle
• Safety: lid safety block when rotor moves; electronic motor brake
• Controls: backlit on/off switch; separate keys for lid and heating
• LED indicators: temperature reached (violet), lid unlocked (green)
• Structure: anti-acid painted metal with lid inspection window
• Temperature homogeneity: engineered for uniform tube temperature
• Dimensions (WxDxH): 49 x 41 x 26 cm
• Weight: 18 kg
• Power supply: 230 V or 115 V, 50/60 Hz
• Power consumption: max. 840 W
