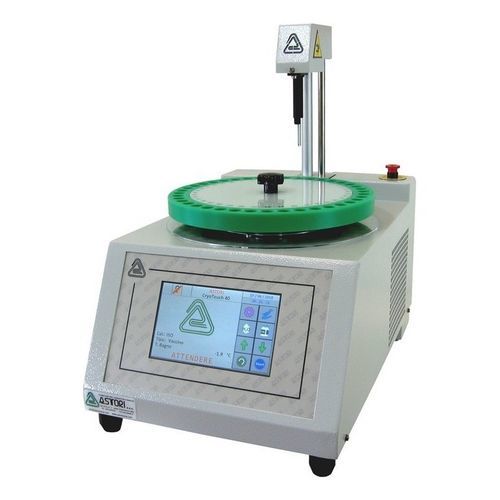

Automatic cryoscope CryoTouch 40

carouselfor milk

Product overview
CryoTouch 40 is an automatic cryoscope with a 40-sample carousel for rapid determination of milk freezing-point variations caused by added water, compliant with IDF‑ISO 5764:2009. The instrument includes a 7" full-colour touchscreen, real-time freezing-curve display, stable memory for over 4,000 results, CryoSoft Touch PC software, USB ports for data export and firmware updates, and support for an optional USB barcode/QR-code reader.

Application
Designed for milk testing laboratories and dairy processors to perform official analyses according to the ISO reference method. The integrated lactose-free function supports monitoring and verification of lactose removal in milk and cream.

Key features

• Choice of 6 reference values and 2 formulas to calculate added-water percentage
• Two reading modes: ISO plateau mode or fixed-time mode
• Real-time temperature graph during each analysis on the 7" display
• Alphanumeric sample ID field (up to 20 characters)
• Optional USB barcode/QR-code reader for fast sample identification
• Colour-coded results for rapid identification of anomalies or critical values
• Dedicated calibration curve for lactose-free products in addition to the ISO curve
• Stable memory for two calibration curves and for over 4,000 results
• Data export to USB pen drive and firmware updates via USB
• Real-time PC monitoring and data handling via CryoSoft Touch
• Immediate visualization of error messages

Technical characteristics

• Sample capacity: up to 40 samples
• Display: 7" full-colour touchscreen
• Cooling: bath with Peltier cells, software-controlled
• Operating ambient temperature: +5°C to +36°C
• Automatic calibration
• Amplitude and agitation controlled by software
• Selectable units: °C, °Hortvet and % water
• Sample volume: 2 or 2.5 mL
• Analysis duration: about 2 minutes per test
• Warm-up time: about 5 minutes
• Resolution: ±0.0005°C
• Reproducibility (on bovine milk): ±0.0025°C
• 2 × USB ports for data export, firmware updates and optional barcode/QR reader
• 2 × RS232 ports for thermal printer and optional PC
• Power absorption: max. 150 W
• Dimensions (W × D × H): 330 × 610 × 360 mm (head down)
• Net weight: 20.5 kg
