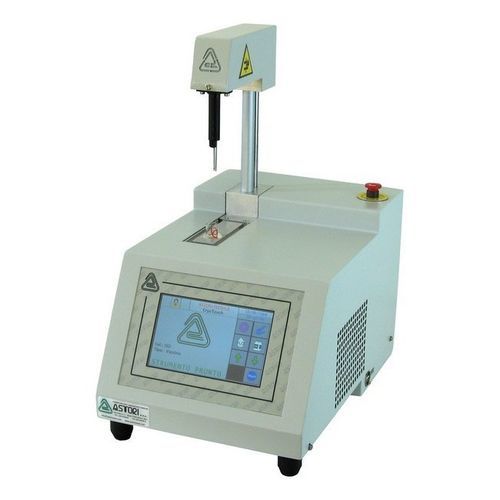

Automatic cryoscope CryoTouch 1

single samplefor milk

Product overview
CryoTouch 1 is a single-sample automatic cryoscope for rapid determination of milk cryoscopic point variation caused by added water, in compliance with IDF-ISO 5764:2009.

Main features
The instrument offers a full-colour 7-inch touchscreen, real-time freezing-curve visualization, memory for over 4,000 results, CryoSoft Touch PC software for data handling, USB ports for data export and firmware updates, optional barcode/QR-code reader support, and immediate error-message display.

Additional notes
CryoTouch 1 enables milk laboratories and dairy processors to perform official analyses based on the ISO reference method. The device includes a dedicated lactose-free function to monitor lactose removal in milk and cream.

New functions, great advantages:

• Selectable reference value from 6 presets and two formulas for calculating added water percentage
• Two reading modes: ISO plateau mode or fixed-time mode
• Real-time sample temperature graph during each analysis
• 20-character alphanumeric sample ID can be added
• Optional USB barcode/QR-code reader for fast sample identification
• Colour-coded results for quick detection of anomalies or critical values
• Dedicated lactose-free calibration curve option for lactose-reduced products
• Memory for two calibration curves (ISO and user-configurable)
• Stable memory for up to 4,000 results
• Easy export of test results to a USB pen drive
• Firmware updates via USB pen drive
• Real-time PC monitoring and quick data download via CryoSoft Touch
• Immediate visualization of error messages

Technical specifications

• Sample capacity: single sample
• Display: full-colour 7-inch touchscreen
• Bath with Peltier cells controlled by software
• Operating ambient temperature: +5°C to +36°C
• Automatic calibration
• Lash and agitation width controlled by software
• Selectable units: °C, °Hortvet and water %
• Sample volume: 2 or 2.5 mL
• Analysis duration: about 2 minutes per test
• Warm up time: about 5 minutes
• Resolution: ±0.0005°C
• Reproducibility (on bovine milk): ±0.0025°C
• 2 × USB ports for data download, firmware updates and connection to an optional USB barcode/QR-code reader
• 2 × RS232 ports for connecting an optional thermal printer and a PC
• Power consumption: max. 150 W
• Dimensions (W × D × H): 285 × 485 × 360 mm (head down)
• Net weight: 16.1 kg
