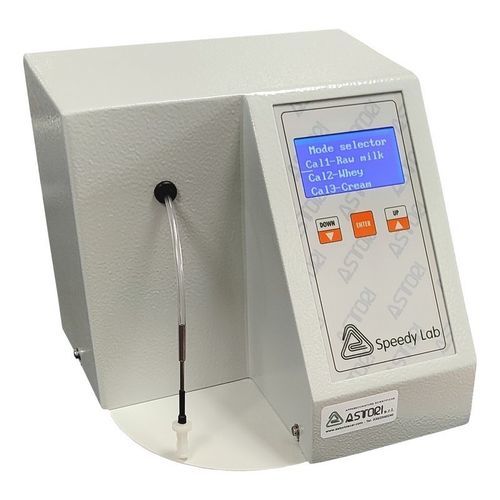

Total fat analyzer Speedy Lab

proteinwheycream

Product description
Automatic instrument for the quick determination of fat, proteins, lactose, density and dry matter (SNF) in milk, cream and whey samples. Based on an ultrasonic application, Speedy Lab requires no sample preparation, homogenization, heating, consumables or chemicals. Its compact design and ease of use suit small and medium routine dairy analyses. The latest version enables direct cream and whey analysis with extended analytical ranges and improved accuracy.


Video (embedded)
Milk analyzer Speedy Lab (embedded video).


Advantages

Measures fat, proteins, lactose, density and dry matter (SNF) on various milk, cream and whey matrices

User-friendly interactive menu for analyses and calibrations

Simple calibration via keyboard or PC for up to three sample types

Results in about 60 seconds without operator presence

No sample preparation, homogenization or heating required

No consumables or reagents needed

Precision pump aspirates samples from any container

Extendable sampling probe

Separated inlet and waste channels eliminate carry-over

Calibration and data-handling software included

Certified according to Russian GOSS Institute

Technical features

Measurement ranges and accuracy:

Fat: 0.01%–45.00% (±0.06%)

Lactose: 0.01%–6.00% (±0.20%)

Proteins: 2.00%–7.00% (±0.15%)

Dry matter (SNF): 3.00%–40.00% (±0.15%)

Density: 1,015–1,160 Kg/m3 (±0.3 Kg/m3)

Sample volume: 5 mL (milk and whey); 7 mL (cream)

Operating conditions: 10C–35C; relative humidity 30%–80%

Interfaces: RS232 (printer), USB (PC)

Power supply: 12 VDC for 110/220 VAC, 50/60 Hz; car adapter available

Power consumption: 30 W

Dimensions: 230 x 230 x 205 (H) mm

Weight: 3.8 kg

Specifications

Model: Speedy Lab

Parameters: fat, proteins, lactose, density, dry matter (SNF)

Sample volumes: 5 mL (milk/whey), 7 mL (cream)

Interfaces: RS232, USB

Operating temperature: 10C–35C; RH 30%–80%

Power: 12 VDC for 110/220 VAC, 50/60 Hz; consumption 30 W

Dimensions (mm): 230 x 230 x 205; Weight: 3.8 kg
