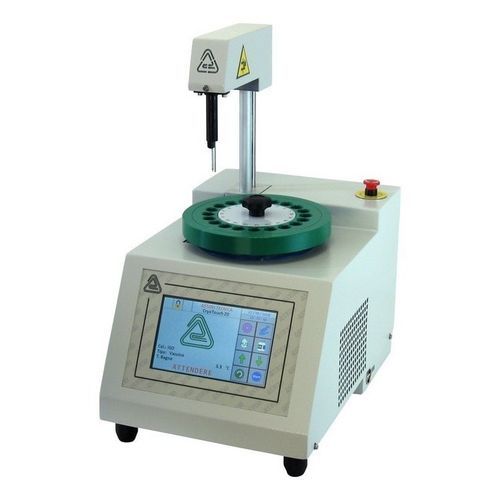

Automatic cryoscope CryoTouch 20

carouselfor milk

Overview
CryoTouch 20 is a carousel-based cryoscope for rapid determination of milk freezing point variation caused by added water, fully compliant with the IDF-ISO 5764:2009 reference method. The instrument features a 7" full-colour touchscreen, real-time freezing-curve display, internal memory for over 4,000 results, CryoSoft Touch PC software for data management, USB ports for data export and firmware updates, and optional USB barcode/QR-code reader support.

Application
Designed for milk testing laboratories and dairy quality control to perform official ISO-based analyses, detect added water and monitor process changes. The dedicated lactose-free function supports monitoring of lactose removal in milk and cream during processing and quality checks.

Key capabilities

• 20-sample carousel for batch testing and higher throughput
• Choice of 6 reference values and 2 formulas to calculate added-water percentage
• Two reading modes: ISO plateau mode or fixed-time mode
• Real-time temperature graph of each sample during analysis
• Ability to assign a 20-character alphanumeric ID to each sample
• Optional USB barcode/QR reader for fast sample identification
• Results shown in colours for quick detection of anomalies or critical values
• Dedicated lactose-free function and user-set calibration curve for lactose-removed products
• Memory for two calibration curves (ISO and user-defined) and up to 4,000 results
• Easy export of results to USB pen drive and firmware updates via USB
• Real-time PC monitoring and fast data download using CryoSoft Touch
• Immediate visualization of error messages

Screenshots / Video
Product page includes screenshots of CryoSoft Touch and an embedded demo video showing CryoTouch features and operation.

Technical specifications

• Sample capacity: up to 20 samples
• Display: 7" full-colour touchscreen
• Bath: Peltier-cell cooling controlled by software
• Operating ambient temperature: +5°C to +36°C
• Automatic calibration
• Software-controlled agitation and lash parameters
• Selectable units: °C, °Hortvet and water %
• Sample volume: 2.0 or 2.5 mL
• Analysis time: about 2 minutes per test
• Warm-up time: about 5 minutes
• Resolution: ±0.0005°C
• Reproducibility (bovine milk): ±0.0025°C
• 2 × USB ports for data download, firmware updates and optional barcode/QR reader
• 2 × RS232 ports for supplied thermal printer and optional PC
• Power consumption: max. 150 W
• Dimensions (w × d × h, head down): 285 × 485 × 360 mm
• Net weight: 17.4 kg
