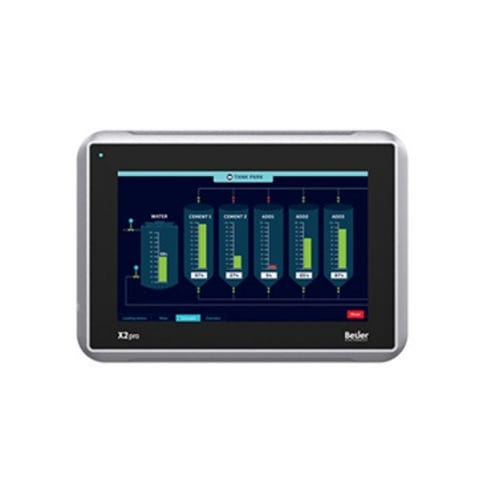

HMI terminal with touch screen / panel-mount / 800 x 480 / ARM Cortex-A9
X2 pro 7

{{requestButtons}}

Characteristics

  • Interface:

    with touch screen

  • Mounting:

    panel-mount

  • Resolution:

    800 x 480

  • Processor:

    ARM Cortex-A9

  • Other characteristics:

    TFT LCD, Ethernet

  • Screen size:

    7 in

Description

X2 pro 7
7'' HMI with iX runtime
800 × 480 pixel (16:9)
TFT-LCD touch screen
1.5 GB application memory
Ethernet 1x100 Mbit
-10°C to +60°C operating temperature
CE, FCC, KCC, UL approvals
DNV GL, KR, LR, ABS, CCS, BV, NK marine approvals

General description
Part number630000205
Part statusActive
Warranty2 year
Certifications
GeneralCE, FCC, KCC, UL 61010-2-201
MarineKR, LR, ABS, BV, CCS, NK, DNV GL
Mechanical
Mechanical size204 x 143 x 50mm
Mounting optionPanel Mount, VESA 75 x 75
Number of touches1million finger touch operations
Touch typeResistive
Cut-out size189 x 128mm
Weight0.8 kg
Housing materialPowder-coated aluminum, Gray
Power
Input voltage24 V DC (18 to 32 VDC) CE: The power supply must conformwith the requirements according to IEC 60950 and IEC 61558-2-4. UL and cUL: The power supplymust conformwith the requirements for class II power supplies.
Power consumption (max)14.4W
Input fuseInternal DC fuse
System
CPUi.MX6Solo Single Cortex-A9 1.0GHz 512kBL2cache
RAM512 MB
FLASH2GB SSD(eMMC), 1.5GB free for application
