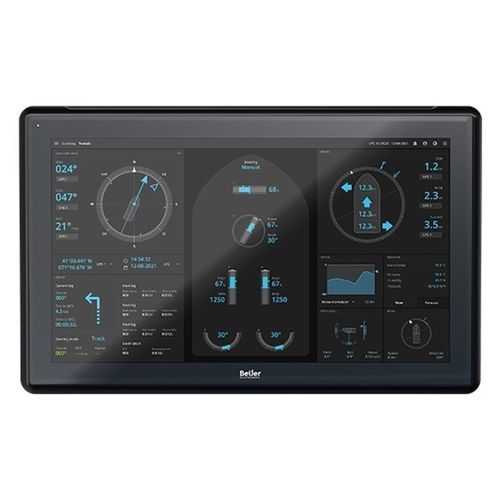

Resistive touch screen HMI X3 marine 21 P CT

capacitive touch screenpanel-mount1920 x 1080

High performant marine HMI Design optimized for use in marine environments Cybersecurity design based on IEC 62443-4-2 -10°C to 50°C operating temperature -20°C to 70°C storage temperature Facts Life cycle status - Active Certifications General - CE, FCC, KCC Marine - DNV, KR, LR, ABS, BV, CCS, NK Safety - UL 61010-2-201 Mechanical Mechanical size - 204 x 143 x 63 mm Number of touches - 1million finger touch operations Touch type - Resistive Cut-out size - 189 x 128 mm Weight - 1,2 kg Housing material - Powder-coated aluminum, Black Power Input voltage - 24 VDC (18 to 32 VDC) CE: The power supply must conform with the requirements according to IEC 60950 and IEC 61558-2-4.UL and cUL: The power supply must conform with the requirements for class 2 power supplies. Power consumption (max) - typ- 8W / max. 12W Input fuse - Internal DC fuse, 3.15 AT RAM - 4 GB FLASH - 32 GB eMMC Cybersecurity - Cybersecurity design based on IEC 62443-4-2 Display Backlight life time - 50000 hours Backlight brightness - 500 cd/m2 Backlight dimming - Industrial Dimming Display pixel error - Class I, according to ISO 9241-307
