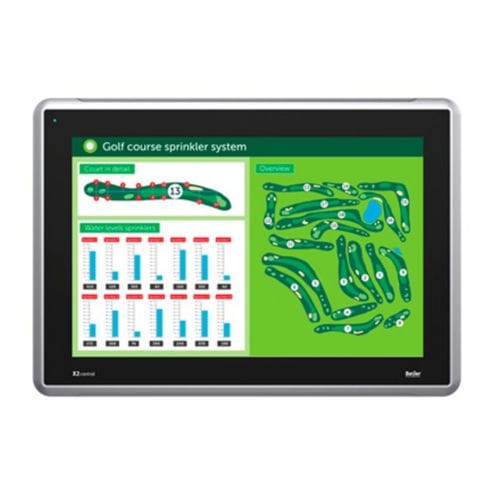

Resistive touch screen HMI terminal X2 control 15

panel-mountVESA mounting1280 x 800

-1.5 GB application memory -Ethernet 2x100 Mbit -EtherCAT as standard -CODESYS control integrated -CE, FCC, KCC, UL approvals -DNV GL, KR, LR, ABS, CCS, BV, NK, RS marine approvals Certifications General - CE, FCC, KCC, UL 61010-2-201 Marine - KR, LR, ABS, BV, CCS, NK, DNV GL, RS Safety - UL 61010-1, UL 61010-2-201, CAN/CSA-C22.2 No. 61010-1, CAN/CSA-C22.2 No. 61010-2-201 Mechanical Mechanical size - 410 x 286 x 61mm Number of touches - 1million finger touch operations Touch type - Resistive Cut-out size - 394 x 270mm Weight - 3.85 kg Housing material - Powder-coated aluminum, Gray Power Input voltage - 24 V DC (18 to 32 VDC)CE: The power supply must conformwith the requirements according to IEC 60950 and IEC 61558-2-4.UL and cUL: The power supplymust conformwith the requirements for class II power supplies. Power consumption (max) - 31.2W Input fuse - Internal DC fuse System RAM - 2 GB FLASH - 2GB SSD(eMMC), 1.5GB free for application Display Backlight life time - 50000 hours Backlight brightness - 450 cd/m2 Backlight dimming - Industrial Dimming Softcontrol Codesys runtime version - 3.5 Codesys EtherCAT - Yes Codesys Modbus Ethernet - Yes Digtal IO Digital output - 2xDO Solid state relay, 0.5A@24VDC Serial communication Number of serial ports - 1 Port 9pin DSUB Ethernet communication Number of Ethernet ports - 2 Ethernet port 1 - 1x10/100 Base-T (shielded RJ45) Ethernet port 2 - 1x10/100 Base-T (shielded RJ45) Communication CAN Number of CAN ports - 2 CAN port 1 - 0.5 MBit CAN port 2 - 0.5 MBit Expansion interface Expansion port - Yes, ciX expansion module SD card - SD and SDHC USB - 2xUSB 2.0 500mA Environmental Operating temperature - -10°C to +60°C Storage temperature - -20°C to +70°C
