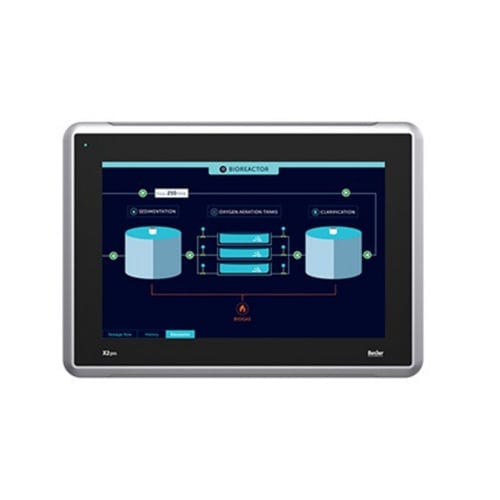

Resistive touch screen HMI terminal X2 pro 12

panel-mountVESA mounting1280 x 800

-1.5 GB application memory -Ethernet 2x100 Mbit -10°C to +60°C operating temperature -CE, FCC, KCC, UL approvals -DNV GL, KR, LR, ABS, CCS, BV, NK, RS marine approvals Certifications General - CE, FCC, KCC Marine - KR, LR, ABS, BV, CCS, NK, DNV GL, RS Safety - UL 61010-1, UL 61010-2-201, CAN/CSA-C22.2 No. 61010-1, CAN/CSA-C22.2 No. 61010-2-201 Mechanical Mechanical size - 340 x 242 x 57mm Number of touches - 1million finger touch operations Touch type - Resistive Cut-out size - 324 x 226mm Weight - 2.6 kg Housing material - Powder-coated aluminum, Gray Power Input voltage - 24 V DC (18 to 32 VDC)CE: The power supply must conformwith the requirements according to IEC 60950 and IEC 61558-2-4.UL and cUL: The power supplymust conformwith the requirements for class II power supplies. Power consumption (max) - 28.8W Input fuse - Internal DC fuse System CPU - i.MX6DualLite, Dual Cortex-A9 1.0GHz 512kBL2cache RAM - 1 GB FLASH - 2GB SSD(eMMC), 1.5GB free for application Display Backlight life time - 50000 hours Backlight brightness - 400 cd/m2 Backlight dimming - Industrial Dimming Serial communication Number of serial ports - 1 Port 9pin DSUB Ethernet communication Number of Ethernet ports - 2 Ethernet port 1 - 1x10/100 Base-T (shielded RJ45) Ethernet port 2 - 1x10/100 Base-T (shielded RJ45) Communication CAN Number of CAN ports - 1 CAN port 1 - 0.5 MBit Expansion interface Expansion port - Yes, ciX expansion module SD card - SD and SDHC Environmental Operating temperature - -10°C to +60°C Storage temperature - -20°C to +70°C Shock - 15g, half-sine, 11ms according to IEC60068-2-27 Vibration - 1g, according to IEC 60068-2-6, Test Fc Sealing back - IP20 Humidity - 5% – 85% non-condensed
