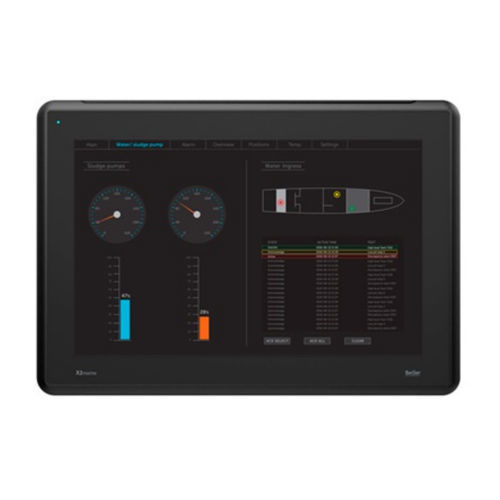

HMI terminal with touch screen / panel-mount / 1280 x 800 / ARM Cortex A9 Dual Core
X2 marine 15

{{requestButtons}}

Characteristics

  • Interface:

    with touch screen

  • Mounting:

    panel-mount

  • Resolution:

    1280 x 800

  • Processor:

    ARM Cortex A9 Dual Core

  • Other characteristics:

    TFT LCD, Ethernet, USB, RS232, RS422/RS485

  • Applications:

    industrial

  • Screen size:

    15 in

Description

X2 marine 15
15'' HMI with iX software
1280 × 800 pixel (16:9) TFT-LCD touch screen
1.5 GB application memory
Ethernet 2x100 Mbit
CE, FCC, KCC, UL approvals
DNV, KR, GL, LR, ABS, CCS marine approvals

General description
Part number640003305
Part statusActive
Warranty2 year
Certifications
GeneralCE, FCC, KCC, UL 61010-2-201
MarineKR, LR, ABS, CCS, NK, DNV GL, BV
Mechanical
Mechanical size410 x 286 x 61mm
Mounting optionPanel Mount, VESA 75 x 75
Number of touches1million finger touch operations
Touch typeResistive
Cut-out size394 x 270mm
Weight3.85 kg
Housing materialPowder-coated aluminum, Black
Power
Input voltage24 V DC (18 to 32 VDC)CE: The power supply must conformwith the requirements according to IEC 60950 and IEC 61558-2-4.UL and cUL: The power supplymust conformwith the requirements for class II power supplies.
Power consumption (max)31.2W
Input fuseInternal DC fuse
System
CPUi.MX6DualLite, Dual Cortex-A9 1.0GHz 512kBL2cache
RAM1 GB
FLASH2GB SSD(eMMC), 1.5GB free for application
