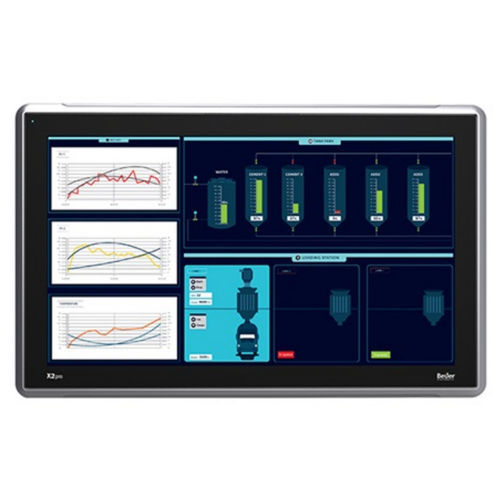

X2 pro 21
21'' HMI with iX runtime
Full 1920 × 1080 pixel HD resolution (16:9)
TFT-LCD touch screen
1.5 GB application memory
Ethernet 2x100 Mbit
0°C to +50°C operating temperature
CE, FCC, UL approvals
Marine certifications are not valid for X2 pro 21
General description
Part number640009505
Part statusActive
Warranty2 year
Certifications
GeneralCE, UL 61010-2-201, FCC
Mechanical
Mechanical size556 x 347 x 65mm
Mounting optionPanel Mount, VESA 75 x 75
Number of touches1million finger touch operations
Touch typeResistive
Cut-out size539 x 331mm
Weight7.38 kg
Housing materialPowder-coated aluminum, Gray
Power
Input voltage24 V DC (18 to 32 VDC)CE: The power supply must conformwith the requirements according to IEC 60950 and IEC 61558-2-4.UL and cUL: The power supplymust conformwith the requirements for class II power supplies.
Power consumption (max)45.6W
Input fuseInternal DC fuse
System
CPUi.MX6Quad, Quad ARMCortex-A9 1.0GHz 1MBL2cache
RAM2 GB
FLASH2GB SSD(eMMC), 1.5GB free for application
Display
Size diagonal21.5" diagonal
Resolution1920x1080 pixels
BacklightLED Backlight
Backlight life time50000 hours
Backlight brightness250 cd/m2
Backlight dimmingIndustrial Dimming
Display typeTFT-LCD with LED backlight
