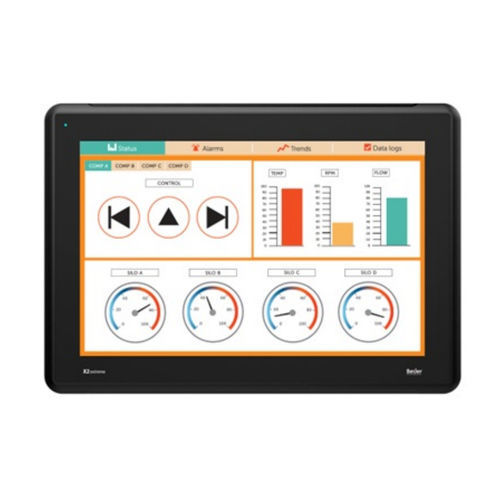

Resistive touch screen HMI terminal X2 extreme 15

panel-mount1280 x 800i.MX6 Cortex A9

-1.5 GB application memory -Ethernet 1x100 Mbit -30°C to +70°C operating temperature -DNV GL, KR, LR, ABS, CCS, BV, NK, RS marine approvals -UL Class I Div 2, ATEX/IECEx Zone 2,22 Certifications General - CE, FCC, KCC, UL 61010-2-201, UL 746C Hazardous - ULC1D2, ATEX (Zone2), ATEX (Zone22), IECEx (Zone2), IECEx (Zone22) Marine - KR, LR, ABS, CCS, BV, NK, DNV GL, RS Mechanical Mechanical size - 410 x 286 x 73mm Number of touches - 1million finger touch operations Touch type - Resistive Cut-out size - 394 x 270mm Weight - 4.1 kg Housing material - Powder-coated aluminum, Black Power Input voltage - 24 VDC (18 to 32 VDC) CE: The power supply must conformwith the requirements according to IEC 60950 and IEC 61558-2-4.UL and cUL: The power supply must conform with the requirements for class 2 power supplies. Power consumption (max) - 18 W Input fuse - Internal DC fuse System RAM - 1 GB FLASH - 2GB SSD(eMMC), 1.5GB free for application Display Backlight life time - 50000 hours Backlight brightness - 450 cd/m2 Backlight dimming - Marine optimized dimming Serial communication Number of serial ports - 1 Port 9pin DSUB Ethernet communication Number of Ethernet ports - 1 Ethernet port 1 - 1x10/100 Base-T (shielded RJ45) Communication CAN Number of CAN ports - 1 CAN port 1 - 1 Mbit Expansion interface SD card - SD and SDHC USB - 2xUSB 2.0 500mA Environmental Operating temperature - -30°C to +70°C Storage temperature - -40°C to +80°C Shock - 40g, half-sine, 11ms according to IEC60068-2-27 Vibration - 4g, according to IEC 60068-2-6, Test Fc Sealing back - IP20 Humidity - 5% – 95% non-condensed
