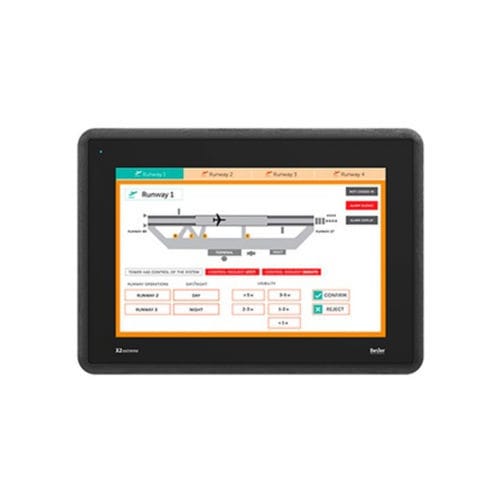

Resistive touch screen HMI terminal X2 extreme 12
panel-mount1280 x 800ARM Cortex A9 Dual Core

resistive touch screen HMI terminal
resistive touch screen HMI terminal
resistive touch screen HMI terminal
Add to favorites
Compare this product


Characteristics

Interface
resistive touch screen
Mounting
panel-mount
Resolution
1280 x 800
Processor
i.MX6 Cortex A9, ARM Cortex A9 Dual Core
Other characteristics
LED backlight, TFT LCD, Ethernet, USB, RS232, RS422/RS485, 1 x RJ45, 4G, rugged, ATEX
Applications
industrial
Screen size

12.1 in

Description

-1.5 GB application memory -Ethernet 1x100 Mbit -30°C to +70°C operating temperature -DNV GL, KR, LR, ABS, CCS, BV, NK marine approvals -UL Class I Div 2, ATEX/IECEx Zone 2,22 Certifications General - CE, FCC, KCC, UL 61010-2-201, UL 746C Hazardous - ULC1D2, ATEX (Zone2), ATEX (Zone22), IECEx (Zone2), IECEx (Zone22) Marine - KR, LR, ABS, CCS, BV, NK, DNV GL, RS Mechanical Mechanical size - 340 x 242 x 69mm - 1million finger touch operations Touch type - Resistive Cut-out size - 324 x 226mm Weight - 2.8 kg Housing material - Powder-coated aluminum, Black Power Input voltage - 24 VDC (18 to 32 VDC) CE: The power supply must conformwith the requirements according to IEC 60950 and IEC 61558-2-4.UL and cUL: The power supply must conform with the requirements for class 2 power supplies. Power consumption (max) - 16 W Input fuse - Internal DC fuse RAM - 1 GB FLASH - 2GB SSD(eMMC), 1.5GB free for application Display Backlight life time - 70000 hours Backlight brightness - 500 cd/m2 Backlight dimming - Marine optimized dimming Serial communication Number of serial ports - 1 Port 9pin DSUB Ethernet communication Number of Ethernet ports - 1 Ethernet port 1 - 1x10/100 Base-T (shielded RJ45) Expansion interface SD card - SD and SDHC USB - 2xUSB 2.0 500mA Environmental Operating temperature - -30°C to +70°C Storage temperature - -40°C to +80°C Shock - 40g, half-sine, 11ms according to IEC60068-2-27 Vibration - 4g, according to IEC 60068-2-6, Test Fc Sealing back - IP20 Humidity - 5% – 95% non-condensed Altitude (max) - < 3000m
