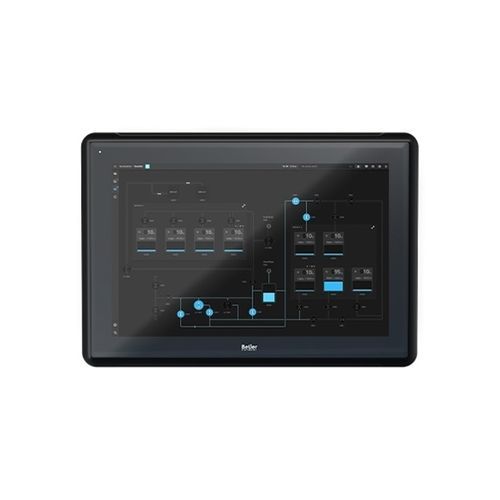

Capacitive touch screen HMI X3 marine 15 P CT

panel mount1280 x 800ARM® Cortex A53

High performant marine HMI Design optimized for use in marine environments Cybersecurity design based on IEC 62443-4-2 -10°C to 60°C operating temperature -20°C to 70°C storage temperature Facts Certifications General - CE, FCC, KCC Marine - DNV, ABS, LR, BV, NK, CCS, KR Safety - UL 61010-2-201 Mechanical Mechanical size - 410 x 286 x 74 mm Mounting option - Panel Mount / VESA 75 x75 Touch type - Capacitive Cut-out size - 394 x 270 mm Weight - 3,7 kg Housing material - Powder-coated aluminum, Black Power Input voltage - 24 VDC (18 to 32 VDC) CE: The power supply must conform with the requirements according to IEC 60950 and IEC 61558-2-4.UL and cUL: The power supply must conform with the requirements for class 2 power supplies. Power consumption (max) - typ- 21W / max. 26W Input fuse - Internal DC fuse, 4 AT System Hardware platform - P RAM - 4 GB FLASH - 32 GB eMMC
