Adsorption compressed air dryer DRYBERG® AD55

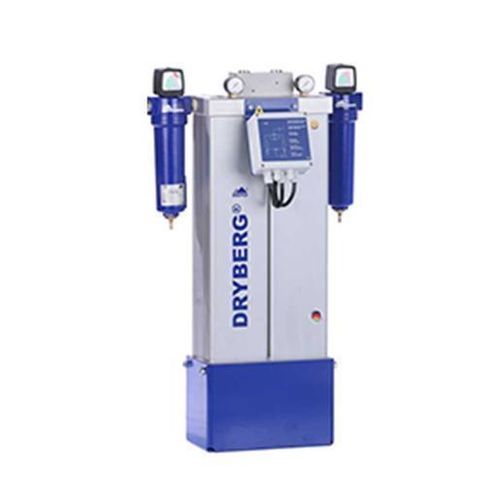

Adsorption compressed air dryer - DRYBERG® AD55 - BERG Kompressoren GmbH - image - 2

Add to favorites

Compare this product

Go to the BERG Kompressoren GmbH website for more information

Characteristics

Technology

adsorption

Capacity

Max.: 119 m³/h
(4,202.45 ft³/h)

Min.: 10.2 m³/h
(360.21 ft³/h)

Working pressure

Max.: 1.6 MPa

Min.: 0.4 MPa

Ambient temperature

Max.: 50 °C
(122 °F)

Min.: 1.5 °C
(34.7 °F)

Weight

36 kg
(79.4 lb)

Dew point

Max.: 1.7 °C
(35.1 °F)

Min.: 0.4 °C
(32.7 °F)

Description

Product information
Adsorption dryer DRYBERG® AD55 installed between the compressor and the receiver to collect and remove condensate (water and oil) and to cool compressed air discharged from the compressor. The outlet provides dry compressed air suitable for pneumatic equipment.

What does a compressed air dryer do?
The adsorption dryer uses an adsorbent material to remove moisture from compressed air. The process operates in a two-tower (two-column) cyclic system: one tower performs adsorption under pressure while the other is regenerated, ensuring continuous supply of dry air with minimal pressure drop at the outlet.

Technical data (summary table)
Capacity* [m3/m]: 0.83
Capacity* [m3/h]: 55
Connection [inch]: 1/2"
Dimensions (AxBxC) [mm]: 875 x 281 x 92
Weight [kg]: 36
Volume flow rate range [m3/h]: 10.2 - 119
Operating pressure [bar]: 4 - 16
Ambient temperature [°C]: 1.5 - 50

Calculated at
Calculated at 1 bar (abs.) and 20°C, at 7 bar g operating pressure and 35°C compressed air inlet temperature (saturated condition).

Operating pressure (bar g) / Inlet temperature - pressure dew point table (extract)
Operating pressure (bar g): 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16
Inlet Temp. 35°C: 0.6 | 0.7 | 0.8 | 1 | 1.1 | 1.2 | 1.3 | 1.5 | 1.5 | 1.6 | 1.6 | 1.7 | 1.7
Inlet Temp. 40°C: 0.5 | 0.6 | 0.7 | 0.8 | 0.9 | 1.1 | 1.2 | 1.3 | 1.4 | 1.5 | 1.6 | 1.7 | 1.7
Inlet Temp. 45°C: 0.4 | 0.5 | 0.5 | 0.6 | 0.7 | 0.8 | 0.9 | 1.0 | 1.0 | 1.1 | 1.2 | 1.3 | 1.4
>45°C: 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0

Availability
Available, delivery time: approximately 3-4 weeks.

Characteristics / technical specifications

Model: DRYBERG® AD55
Nominal capacity: 55 m3/h
Standardized capacity: 0.83 m3/m
Volume flow range: 10.2 – 119 m3/h
Operating pressure: 4 – 16 bar
Ambient operating temperature: 1.5 – 50 °C
Connection: 1/2"
Dimensions (AxBxC): 875 x 281 x 92 mm
Weight: 36 kg
Calculation note: performance calculated at 1 bar (abs.), 20 °C, 7 bar g and 35 °C inlet
