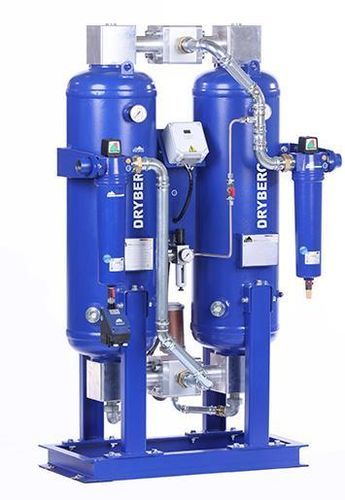

Desiccant compressed air dryer DRYBERG® AD820

adsorptiontwo-stage

Product name
Adsorption dryer DRYBERG® AD820

What does an adsorption dryer do?
Regenerative adsorption dryers use a porous desiccant that adsorbs moisture by collecting it in its pores, allowing large amounts of water to be retained by a relatively small quantity of desiccant. Common desiccants include silica gel, activated alumina and molecular sieves.

Principle of operation
The dryer comprises two columns (towers). Adsorption occurs under pressure in the first column while the second column is regenerated at ambient pressure using a portion of already dried compressed air that is depressurized. When one column becomes saturated, automatic switching occurs and the process continues without a pressure drop at the outlet. Regeneration is achieved by decompressing a small part of the dry compressed air, which becomes extremely dry during expansion and regenerates the desiccant.

Key data and technical table
Capacity* [m3/m]: 13.7
Capacity* [m3/h]: 820
Connector [inch]: 2"
Dimensions (A×B×C×D) [mm]: 1898x1173x1243x900
Weight [kg]: 718

Dew point - Correction factors
Reference temperatures (°C): -25 | -40 | -70
Corresponding correction factors: 1.1 | 1 | 0.7

Calculation conditions
Calculated at 1 bar (abs.) and 20°C, based on an operating pressure of 7 bar g and an inlet compressed air temperature of 35°C (saturated condition).

Filtration and protection
Filter (inlet): Superfine - 0.01 μm
Filter (outlet): dust filter - 1 μm
Protection class: IP 65

Electrical and other data
Voltage / frequency: 230 V, 50 Hz
Power consumption: < 60 W (specified value)
Standby input: default

Characteristics / technical specifications

• Commercial name: DRYBERG® AD820
• Product number / SKU: 1010770820
• Brand: BERG Kompressoren GmbH
• Nominal capacity: 13.7 m3/m (820 m3/h)
• Connector: 2"
• Dimensions (A×B×C×D): 1898x1173x1243x900 mm
• Weight (spec sheet): 718 kg
• Voltage / frequency: 230 V, 50 Hz
• Power consumption: <60 W
• Protection class: IP65
• Filters: inlet superfine 0.01 μm / outlet dust 1 μm
• Dew point at pressure: -40 °C (values and correction factors provided)
