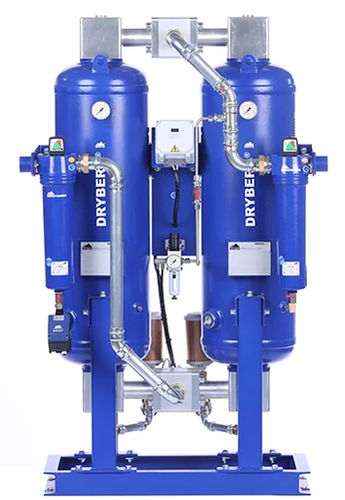

Adsorption compressed air dryer DRYBERG® AD340

Product information
Adsorption dryer DRYBERG® AD340 designed for continuous removal of water vapour from compressed air to reduce pressure dew point.

Benefits

• Low operating costs
• High operational reliability
• Long service life of the adsorption material
• Plug-and-play installation
• Easy maintenance

Technical data
Calculated at 1 bar (abs.) and 20°C; example values at 7 bar g operating pressure and 35°C compressed air inlet temperature (saturated condition).

Capacity* [m3/m]: 5,7
Capacity* [m3/h]: 340
Connection [inch]: 1 1/2"
Dimensions (AxBxCxD) [mm]: 1531x1008x954x715
Weight [kg] (table): 354
Note: meta weight entry: 365 kg

Dew Point - Correction factors
Operating temperature (°C): -25 / -40 / -70
Correction factors: 1.1 / 1 / 0.7

Electrical & filters
Voltage, frequency: 230 V, 50 Hz
Power consumption: <60 W
Protection class: IP65
Filter (inlet): Superfine - 0.01 µm
Filter (outlet): Dust filter - 1 µm
Input for stand-by: standard

Downloads (related manuals)
Operating manuals and controller manual available for the DRYBERG family (see product downloads for PDF manuals).

Characteristics / technical specifications

• Model: DRYBERG® AD340
• Manufacturer: BERG Kompressoren GmbH
• Capacity: 340 m3/h (equivalent 5,7 m3/m)
• Connection: 1 1/2"
• Dimensions (AxBxCxD): 1531 x 1008 x 954 x 715 mm
• Weight: 354 kg (table) / 365 kg (meta)
• Voltage / Frequency: 230 V, 50 Hz
• Power consumption: <60 W
• Protection class: IP65
• Inlet filter: Superfine 0.01 µm
• Outlet filter: Dust filter 1 µm
• Operating condition note: Calculated at 1 bar (abs.) and 20°C at 7 bar g operating pressure and 35°C compressed air inlet temperature (saturated condition)
