Desiccant compressed air dryer DRYBERG® AD1200

heatless desiccantadsorptionheatless adsorption

Product information

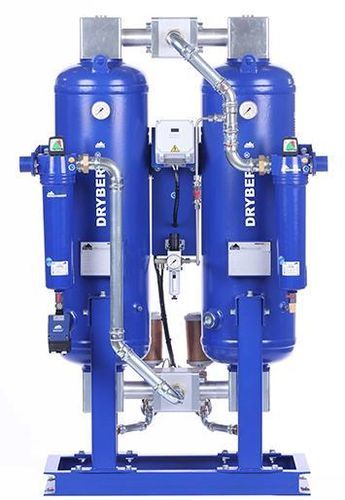

DRYBERG® AD1200 adsorption dryers are designed for continuous removal of water vapor from compressed air to lower the pressure dew point. The AD-Series unit comprises two adsorption towers with triple beds, an LCD controller, valves and gauges for switching and monitoring, a support frame and appropriate filter housings with the required filter elements. Adsorption occurs under pressure in one column while the other column is regenerated at ambient pressure using a portion of already dried compressed air.

Operation / Regeneration
When the adsorption column reaches a defined saturation level, the system switches columns and adsorption proceeds in the second tower without pressure drop at the dryer outlet. Regeneration is achieved by decompressing a small portion of the dried compressed air: expansion makes this purge extremely dry and it is used to regenerate the desiccant bed.

Features / Components

• Twin-tower design with two adsorption columns and triple beds
• Desiccant cartridges arranged in each column
• Controller with LCD display for automatic column switching and status
• Switching valves and pressure gauges for operation monitoring
• Support frame and dedicated filter housings with required filter elements

Technical data (table)
Capacity* [m3/m]: 20
Capacity* [m3/h]: 1200
Connection [inch]: 2"
Dimensions (AxBxCxD) [mm]: 2298x1173x1243x900
Weight [kg]: 890

Dew Point - Correction factors
Operating temperature (°C): -25 | -40 | -70
Correction factors: 1.1 | 1 | 0.7

Electrical and other data
Voltage, frequency: 230V, 50Hz
Power consumption: <60 W
Protection class: IP 65
Filter (inlet): Superfine - 0.01 µm
Filter (outlet): Dust filter - 1 µm
Input for stand-by: standard

Notes
*Calculated at 1 bar (abs.) and 20°C at 7 bar g operating pressure and 35°C compressed air inlet temperature (saturated condition).
