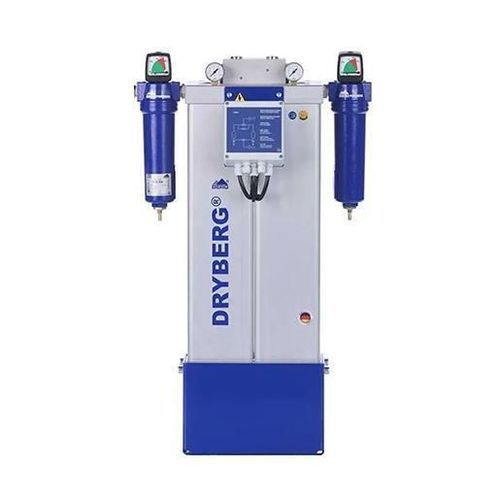

Desiccant compressed air dryer DRYBERG® AD30

heatless desiccantadsorptionheatless adsorption

Product information
Adsorption dryer DRYBERG® AD30 designed to separate water vapor from compressed air and lower the pressure dew point. The unit features a multiport manifold for flexible inlet/outlet orientation, preloaded desiccant cartridges allowing horizontal or vertical installation (20 configuration options) and multi‑voltage capability for worldwide connection.

Key features

• Compact heatless adsorption dryer for small compressed air systems.
• Multiport manifold for flexible inlet/outlet configuration (supports horizontal and vertical installation; 20 installation options).
• Preloaded desiccant cartridges for simplified handling and replacement.
• Multi‑voltage electrical design for direct connection to standard power supplies.
• Designed to reduce dew point; activated carbon variants available in larger models where required.

Technical data (summary)
Capacity* [m3/m]: 0.33
Nominal capacity* [m3/h]: 30
Connection [inch]: 1/2"
Dimensions (AxBxC) [mm]: 675 x 310 x 290
Weight [kg]: 28
Volume flow range [m3/h]: 10.2 - 119
Operating pressure [bar]: 4 - 16
Ambient temperature [°C]: 1.5 - 50

Operating pressure / inlet temperature matrix
Operating pressure (bar g): 4 5 6 7 8 9 10 11 12 13 14 15 16
Inlet Temp. 35°C: 0.6 0.7 0.8 1.0 1.1 1.2 1.3 1.5 1.5 1.6 1.6 1.7 1.7
Inlet Temp. 40°C: 0.5 0.6 0.7 0.8 0.9 1.1 1.2 1.3 1.4 1.5 1.6 1.7 1.7
Inlet Temp. 45°C: 0.4 0.5 0.5 0.6 0.7 0.8 0.9 1.0 1.0 1.1 1.2 1.3 1.4
Inlet Temp. 50°C: 0.3 0.4 0.4 0.5 0.6 0.6 0.6 0.7 0.8 0.9 0.9 1.0 1.1

Notes
The DRYBERG® AD series operates on regenerative adsorption principles using preloaded desiccant cartridges; a small portion of already dried compressed air is used for purge regeneration. The design enables continuous moisture separation to achieve low pressure dew points without added heating elements.

Technical specifications

• Model family: DRYBERG® AD series (cold‑regenerated, heatless adsorption dryers)
• Nominal capacity (AD30): 30 m3/h (0.33 m3/m)
• Connection size: 1/2"
• Dimensions (AxBxC): 675 x 310 x 290 mm
• Weight: 28 kg
• Volume flow range: 10.2 - 119 m3/h
• Operating pressure range: 4 – 16 bar g
• Ambient temperature range: 1.5 – 50 °C
• Installation: horizontal or vertical (multiport manifold allows inlet/outlet reconfiguration)
• Electrical: multi‑voltage capability for worldwide connection
