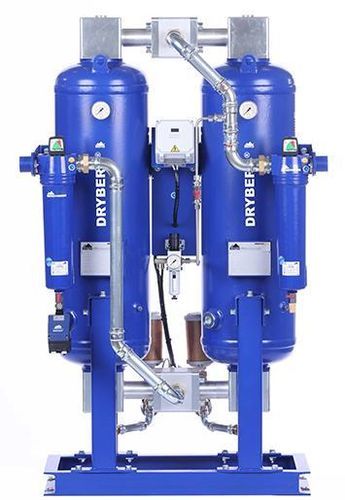

Desiccant compressed air dryer DRYBERG® AD150

adsorptionheatless adsorption

Product information
Adsorption dryer DRYBERG® AD150 for continuous removal of water vapor from compressed air to reduce the pressure dew point.

Description
The AD‑series dryer features two columns filled with treble adsorbent beds, an integrated control with LCD display, switching valves, pressure gauges, support frame and dedicated filter housings. Adsorption occurs under pressure in the active column while the second column is regenerated using a portion of already dried compressed air decompressed to ambient pressure.

Process / Operation

• Twin‑column (dual‑tower) adsorption with alternating operation
• One column adsorbs under pressure while the other is regenerated by a decompressed purge stream
• Automatic column switching to ensure continuous drying without outlet pressure drop
• Integrated control with LCD for cycle monitoring and parameter adjustment

Technical data
Capacity* [m3/m] : 2.5
Capacity* [m3/h] : 150
Connection [inch] : 1"
Dimensions (A×B×C×D) [mm] : 1304 × 853 × 745 × 650
Weight [kg] : 174

Dew Point - Correction factors
Operating temperature (°C) : -25 | -40 | -70
Correction factors : 1.1 | 1 | 0.7

Electrical / Filter / Mechanical data
Voltage, frequency : 230 V, 50 Hz
Power consumption : <60 W
Protection class : IP65
Filter (inlet) : Superfine - 0.01 µm
Filter (outlet) : Dust filter - 1 µm
Input for stand-by : standard

Downloads / Manuals
Operating manual available for the AD150‑1200 and controller (see product downloads).

Characteristics / Technical specifications

• Model: DRYBERG® AD150
• Function: Continuous removal of water vapor from compressed air via regenerative adsorption
• Design: Twin‑tower adsorption dryer with treble beds per column
• Control: LCD display, integrated valves and gauges
• Capacity: 2.5 m3/m (150 m3/h) — calculated conditions noted below
• Connection: 1"
• Dimensions: 1304 × 853 × 745 × 650 mm
• Weight: 174 kg
• Power supply: 230 V / 50 Hz
• Power consumption: <60 W
• Protection class: IP65
• Inlet filter: Superfine 0.01 µm
• Outlet filter: Dust filter 1 µm
• Operating principle: Pressure adsorption with regeneration by decompressed purge of dried air
• Note: Capacity calculated at 1 bar (abs.) and 20°C for 7 bar g operating pressure and 35°C compressed air inlet (saturated condition)
