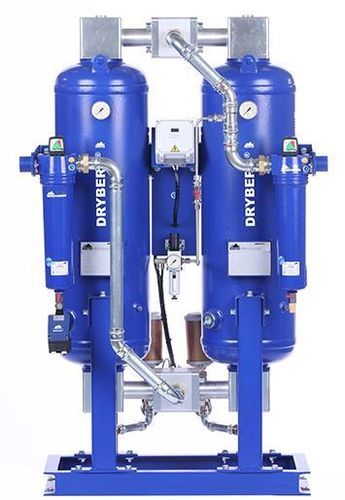

Adsorption compressed air dryer DRYBERG® AD600

by adsorption with heatblower purge

Product information
Adsorption dryer DRYBERG® AD600. Drying with counter‑current desorption using heated blower air and cooling via a relaxed partial flow from the dried compressed‑air stream. Proven process technology combined with advanced control functions. Higher volume flows available on request.

Process / Operating principle
The AD series uses a twin‑tower design filled with adsorption material. Adsorption occurs under pressure in one column while the other column is regenerated by a decompressed partial flow of already dried compressed air together with heated blower air and cooling. Automatic column switching enables continuous drying without pressure drop at the dryer outlet.

Correction factors / Dew point
Calculated at 1 bar (abs.) and 20°C; data shown at 7 bar g operating pressure and 35°C compressed air inlet temperature (saturated condition).
Dew point - Correction factors (operating temperature °C → correction factor): -25 → 1.1; -40 → 1; -70 → 0.7

Downloads & Manuals (examples)
Operating manual and controller documentation for the DRYBERG AD series are available as PDF (see product downloads for available files).

Technical specifications

• Manufacturer: BERG Kompressoren GmbH
• Model: DRYBERG® AD600
• Product number / SKU: 1010770600
• Capacity*: 10 m3/m (600 m3/h)
• Connection: 1 1/2"
• Dimensions (AxBxCxD) [mm]: 2090 x 1008 x 954 x 715
• Weight: 475 kg
• Calculated conditions: at 1 bar (abs.) and 20°C; data shown at 7 bar g and 35°C inlet (saturated)
• Voltage / Frequency: 230 V, 50 Hz
• Power consumption: < 60 W
• Protection class: IP65
• Filter (inlet): Superfine - 0.01 µm
• Filter (outlet): Dust filter - 1 µm
• Input for stand-by: standard
• Regeneration mode: counter‑current desorption with heated blower air and cooling via relaxed partial flow of dried compressed air (ADP universal)
