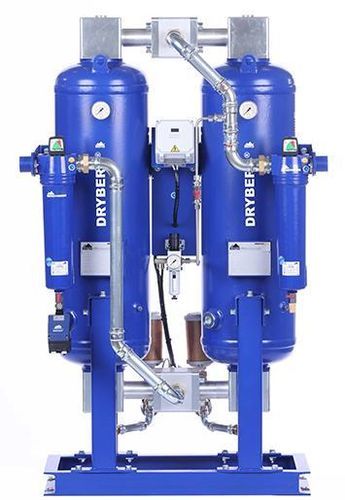

Adsorption compressed air dryer DRYBERG® AD1000

Product information
DRYBERG® AD1000 adsorption dryer for continuous removal of water vapor from compressed air. Twin-tower design enables continuous drying by alternating adsorption and regeneration cycles to maintain a low pressure dew point without interrupting the supply.

Switch-over
After regeneration the regenerated vessel is repressurized by closing the purge valves. When operating pressure is reached the airflow is switched from the adsorbing vessel to the regenerated vessel. Adsorption resumes in the regenerated vessel while the other vessel enters regeneration.

Key features

• Twin-tower adsorption system with alternating adsorption and regeneration
• Regeneration by pressure-decompression using a portion of dried compressed air
• Valve-controlled switch-over and purge for vessel repressurization
• Designed to reduce pressure dew point and deliver dry, oil-free compressed air
• Integrated control panel, valves and filter housings for industrial installation

Dew point - Correction factors (summary)
Operating temperature (°C): -25 / -40 / -70
Correction factors: 1.1 / 1 / 0.7

Notes
Calculations based on 1 bar (abs.) and 20°C at 7 bar g operating pressure and 35°C compressed air inlet temperature (saturated condition).

Technical specifications

• Model: DRYBERG® AD1000
• SKU: 1010771000
• Brand: BERG Kompressoren GmbH
• Capacity*: 16.7 m3/m (1000 m3/h)
• Connection: 2"
• Dimensions (AxBxCxD) [mm]: 2198 x 1173 x 1243 x 900
• Weight: 851 kg (technical) / 870 kg (meta)
• Voltage, frequency: 230 V, 50 Hz
• Power consumption: < 60 W
• Protection class: IP 65
• Inlet filter: Superfine - 0.01 µm
• Outlet filter: Dust filter - 1 µm
• Input for standby: standard
• Operating principle: continuous adsorption in one column while the other regenerates; vessel repressurization by closing purge valves and switching flow to regenerated vessel
• Application note: data/calculations based on 1 bar (abs.) and 20°C at 7 bar g operating pressure and 35°C inlet (saturated conditions)
• Typical net price (excl. VAT): 21,630.00 EUR
