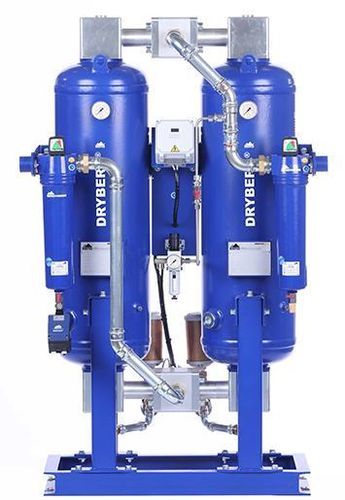

Adsorption compressed air dryer DRYBERG® AD480
heatless adsorption

Add to favorites

Compare this product

Characteristics

Technology

adsorption, heatless adsorption

Capacity

Min.: 150 m³/h
(5,297.2 ft³/h)

Max.: 4,000 m³/h
(141,258.67 ft³/h)

Working pressure

Min.: 0.4 MPa

Max.: 1.6 MPa

Operating temperature

Min.: 2 °C
(35.6 °F)

Max.: 50 °C
(122 °F)

Weight

Min.: 375 kg
(826.7 lb)

Max.: 390 kg
(859.8 lb)

Dew point

Min.: -70 °C
(-94 °F)

Max.: -29 °C
(-20.2 °F)

Product information

Adsorption dryer DRYBERG® AD480
Cold-regeneration adsorption dryer for continuous removal of water vapour from compressed air
Operating pressure: 4–16 bar
Inlet air temperature range: 2–50 °C
Pressure dew point: -40 °C (options -29 °C / -70 °C)
Flow range: 150–4000 Nm3/h (nominal 480 Nm3/h)
Average purge air for regeneration: approx. 15–20%

Technical data (excerpt)

Capacity [m3/m]: 8
Capacity [m3/h]: 480
Connection: 1 1/2"
Dimensions (AxBxCxD) [mm]: 1630 x 1008 x 954 x 715 (variant: 1630 x 1008 x 1653 x 716)
Weight: 375 kg (page also lists 390 kg)

Electrical, dew point and auxiliary data

Dew point correction factors: Temperatures -25 / -40 / -70 °C → factors 1.1 / 1 / 0.7
Voltage, frequency: 230 V, 50 Hz
Power consumption: <60 W
Protection class: IP65
Inlet filter: Superfine - 0.01 μm
Outlet filter: Dust filter - 1 μm
Standby inlet: default

Characteristics / technical specifications

Type: Adsorption dryer, cold regeneration
Model: DRYBERG® AD480
Operating pressure: 4–16 bar (g)
Inlet temperature range: 2–50 °C
Pressure dew point (DTP): -40 °C (variants -29 °C / -70 °C)
Nominal flow: 480 Nm3/h (series range 150–4000 Nm3/h)
Capacity: 8 m3/m
Regeneration air consumption: approx. 15–20%
Power supply: 230 V / 50 Hz
Power consumption: <60 W
Protection class: IP65
Connection: 1 1/2"
Integrated filters: inlet superfine 0.01 μm; outlet dust 1 μm
Note: Multiple dimension/weight variants appear on the page (e.g., CT version) — verify exact reference when ordering
