In an environment of rising energy costs and tight environmental regulations, the BHS Corrugated integrated steam system minimises energy losses and improves corrugated board production efficiency. BHS Corrugated supplies a coordinated, single-source solution fully integrated into the corrugator: development, installation and commissioning tailored to production needs.

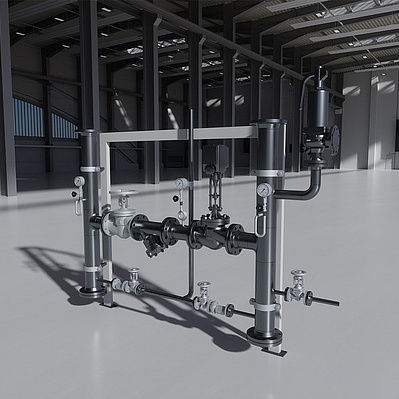

Main steam reduction station

• Automates pressure regulation for the main steam supply when boiler pressure exceeds 16 bar to maintain constant system pressure.
• Constructed from low-maintenance, high-grade fittings; pressure controlled electronically via a PLC-driven control valve.
• Includes an automatic heating function for the entire corrugator.
• Delivered fully pre-piped and assembled in accordance with country-specific regulations.
• Equipped with overpressure safety devices to prevent exceeding maximum limits.

SF power trap station (Single Facer)

• Machine condensate is conveyed into the condensate system by a mechanical condensate pump.
• Automatic blow-off valves secure the required differential pressure for the machine.
• Components and layout are designed to ensure reliable machine function and long service life.
• Supplied fully assembled and in compliance with local regulations.

SF control station (Single Facer)

• Provides inlet and differential pressure control for the Single Facer to ensure energy-efficient operation across production conditions.
• Integrated spray steam generation removes the need for an external central spray steam supply.
• Delivers investment and operating cost advantages compared with a central spray steam system and improves Single Facer operation.
• Modular design allows inclusion of an integrated mechanical condensate pump (optional) to return condensate to the condensate system.
• Supplied fully assembled, electrically and pneumatically prepared and built to country-specific standards for quick and safe installation.

DF compact station (Double Facer)

• Designed for individual steam pressure control of heating sections to allow fast response to temperature changes from different paper types and grammages.
• Fast pressure reduction and differential pressure control provide quick, reliable adaptation to production requirements.
• Condensate is returned to the condensate system using mechanical condensate pumps.
• Optional automatic saturated steam switchover from spray steam prevents overheating at low steam pressures.
• Available for all heating-section layouts; suitable for new and existing installations and delivered fully assembled for connection.

DF expansion station (Double Facer)

• Optional add-on module enabling stable production with steam pressures down to 1.5 bar across heating sections while maintaining high resource and energy efficiency.
• Delivered fully assembled and compliant with country-specific regulations.

Condensate tank station

• Central component of a closed steam-and-condensate system enabling condensate recovery at higher pressure levels.
• Generates significant resource and energy savings (up to ~20% compared with systems without condensate recovery).
• Supplies spray steam to machines lacking their own spray steam generation.
• Delivered fully assembled, pre-piped and built according to country-specific regulations; includes overpressure safety devices.

Benefits

• Seamless interaction of modules for high project reliability.
• Efficient and cost-optimised steam usage with condensate recovery.
• Single-source delivery: development, installation and commissioning.
• High availability and long service life through durable components and globally available spare parts.
• Quick, safe installation due to fully assembled, pre-piped and pre-prepared stations.

Technical specifications

• Fully integrated steam system designed for corrugators.
• PLC-controlled pressure management (control valve) for main steam reduction.
• Main steam reduction activation at boiler pressures above 16 bar.
• Automatic heating function for the corrugator included in main station.
• Mechanical condensate pumps for machine condensate return.
• Automatic blow-off valves to secure differential pressure for machines.
• Integrated spray steam generation for Single Facer (eliminates central spray steam requirement).
• Modular station design; optional integrated mechanical condensate pump available.
• Condensate recovery yields up to ~20% resource and energy savings vs. no recovery.
• Stations supplied fully assembled, pre-piped, electrically and pneumatically prepared; compliant with country-specific regulations and equipped with overpressure safety devices.
• Suitable for retrofit and new installations; supports various heating-section layouts and paper grammages.
