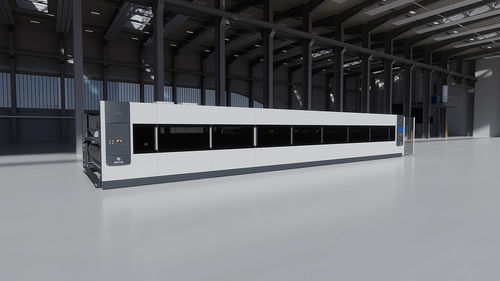

Bonding system

Overview
The Double Facer by BHS Corrugated delivers bonding, drying and web transport for flute sizes from micro-flute up to heavy triple-corrugated board. It is engineered for high line speeds and stable web quality across a range of board grades.

Platerol loading system
The Platerol loading system combines roll and pressure-shoe principles to provide efficient heat transfer and reliable web joins. It balances line pressure and surface pressure to prevent caliber losses at narrow widths. The system is fully automated and operable from the main console or the local control station.

• Roll-and-pressure-shoe combination for optimized heat transfer
• Adjustable line and surface pressure to maintain calibre
• Reduced rejects during fast grade changes
• Full automation with console or local operation

Technical features
The Machine Control Center (MCC) is the operator interface and system monitor, consolidating machine state, diagnostics and settings management. The MCC supports testing, modification and storage of parameters and includes an integrated cleaning program. A special belt increases wear resistance, improves drying and ensures board flatness.

• MCC with operating hours counter, maintenance prompts and complex diagnostics
• Integrated cleaning program
• Enhanced belt: higher wear resistance, improved drying, consistent flatness

Pressure shoes and hotplates
Consistent surface pressure from the pressure shoes ensures effective heat transfer between hotplates and corrugated board and prevents board compression across the width. Hotplates are mounted on a stable base to keep flatness under all operating conditions and respond quickly to production changes. Large front doors and a height-adjustable loading system facilitate cleaning and maintenance.

• Uniform surface pressure for efficient heat transfer
• Stable-base mounting for flat hotplate positioning
• Fast response to production changes; reduced waste
• Large front doors and adjustable loading for near self-cleaning

DualBoost
DualBoost is an infeed module that raises production speed and accelerates ROI by combining lower-liner heating with steam moistening of the upper web. The two functions are independently controllable to match speed and board grade. Steam is applied in the running direction to condition paper and starch at flute tips before bonding, improving internal energy and reducing drying risk. The spray unit is designed for low maintenance.

• Combines liner heating and steam moistening to boost the gluing process
• Independently controllable according to speed and board grade
• Steam directed with running direction; maintenance-friendly spray openings
• Reported benefits: adhesive strength gain up to ~10%; typical speed increases up to +30 m/min (double wall) and up to +20 m/min (triple wall)

Machine safety
The Double Facer is engineered to meet applicable safety standards and regulations. Safety functions and machine design prioritize operator protection and safe operation.

Technical specifications

• Product type: Double Facer (suitable from micro-flute to heavy triple-corrugated board)
• Platerol loading system: combined rolls and pressure shoes; fully automated
• DualBoost module: liner heating + steam moistening; independently controllable; low-maintenance spray unit
• MCC: system monitoring, operating hours counter, maintenance system, diagnostics, settings management, integrated cleaning program
• Belt: enhanced wear resistance, improved drying, ensures board flatness
• Hotplates: stable-base mounting, fast reaction to production changes, large front doors and height-adjustable loading for cleaning
• Reported DualBoost results: ~+10% adhesive strength; speed gains up to +30 m/min (double wall), up to +20 m/min (triple wall)
