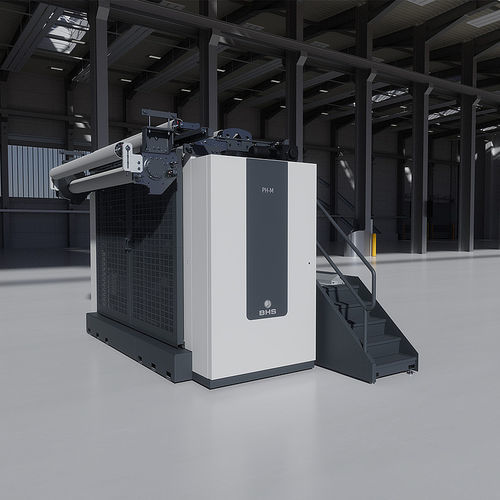

Steam preheater safety
Add to favorites
Compare this product
Characteristics
- Heating method
- steam
- Options
- safety
Description
Overview
Whether configured as an external Preheater with a Single Facer or as a Triplex Preheater, BHS Corrugated Preheaters provide reliable attainment of target process temperatures and required paper tension for optimal bonding and flatness of corrugated board.
Steam energy
Minimize process energy consumption by maintaining precisely controlled process temperatures. Efficient steam use reduces energy input to the minimum required for consistent production quality.
Control
Drums are standard with a diameter of 1,100 mm and are designed for paper speeds up to 600 m/min. The drums deliver efficient heat transfer. Hinged tandem wrap rolls enable controlled paper wrapping with automatically regulated cylinder contact. Pendular rolls are integrated to balance web tension variations and potential temperature transmission fluctuations.
Advantages
Machine safety
Designed and manufactured to meet high safety standards and applicable regulations, with operator safety and regulatory compliance prioritized throughout the product design.
Technical specifications
Whether configured as an external Preheater with a Single Facer or as a Triplex Preheater, BHS Corrugated Preheaters provide reliable attainment of target process temperatures and required paper tension for optimal bonding and flatness of corrugated board.
Steam energy
Minimize process energy consumption by maintaining precisely controlled process temperatures. Efficient steam use reduces energy input to the minimum required for consistent production quality.
Control
Drums are standard with a diameter of 1,100 mm and are designed for paper speeds up to 600 m/min. The drums deliver efficient heat transfer. Hinged tandem wrap rolls enable controlled paper wrapping with automatically regulated cylinder contact. Pendular rolls are integrated to balance web tension variations and potential temperature transmission fluctuations.
Advantages
- Chromed cylinders for improved heat transfer and extended service life
- Electronic control system for consistent, optimally-tared web tension across speeds
- Efficient utilization of cylinder surface via tandem wrap rolls combined with chain wheel actuation
- Machines are safety-tested in application-relevant areas
- Threading guide to facilitate web thread-up
- Available in various cylinder diameters to suit specific applications
Machine safety
Designed and manufactured to meet high safety standards and applicable regulations, with operator safety and regulatory compliance prioritized throughout the product design.
Technical specifications
- Product type: Preheater (external Preheater with Single Facer or Triplex Preheater)
- Standard drum diameter: 1,100 mm
- Design paper speed: up to 600 m/min
- Drum surface: chromed cylinders for improved heat transfer and durability
- Control options: speed-controlled or temperature-controlled operation
- Wrapping system: hinged tandem wrap rolls with automatically regulated cylinder contact
- Tension management: integrated pendular rolls to balance web tension variances
- Web threading: threading guide to facilitate thread-up
- Drive / actuation: tandem wrap rolls combined with chain wheel actuation for optimal cylinder utilization
- Safety: machines are safety-tested and designed to meet high regulatory and user-safety standards
- Availability: various cylinder diameters to suit specific applications
