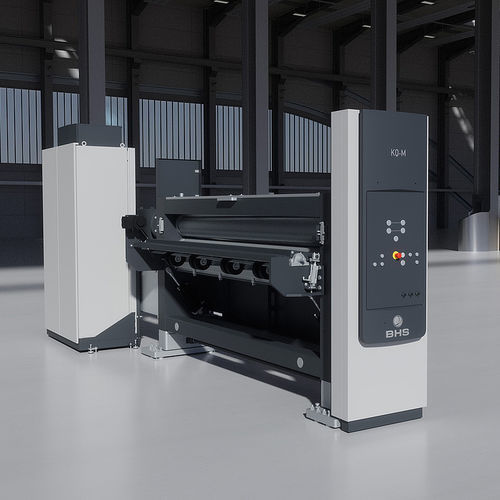

Mechanical shear KQ-M

double-headhigh-productivity

Overview Rotary Shear KQ-M is designed for safe removal of start-up waste and for executing large width changes. Installed immediately after the Double Facer in the corrugator, the unit features a compact layout and very low maintenance requirements, enabling straightforward integration into existing lines.

Applications / Use cases

• Rapid and safe removal of start-up waste in corrugators
• Implementation of large width changes between orders
• Direct integration after the Double Facer in production lines

Cutting principle

• Two counter-rotating knife bars provide reliable cutting action
• Handles heavy corrugated board formats up to 3,000 g/m²
• Standard cutting speeds up to 300 m/min, compatible with common order-change systems
• Compact mechanical design for quick installation and alignment

Machine safety

• Designed and manufactured to comply with high safety standards and regulatory requirements
• Construction and compliance measures aimed at ensuring operator protection and reliable operation

Characteristics / Technical specifications

• Model: KQ-M
• Brand: BHS Corrugated
• Primary use: removal of start-up waste; large width changes
• Installation position: immediately after the Double Facer in the corrugator
• Cutting principle: two counter-rotating knife bars
• Maximum board grammage handled: up to 3,000 g/m²
• Cutting speed: up to 300 m/min (standard)
• Design: compact for easy integration into existing corrugators
• Maintenance: very low maintenance costs
• Compatibility: compatible with standard order-change systems
