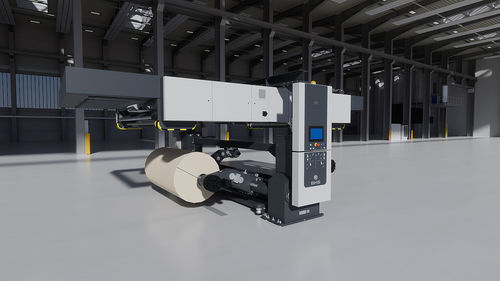

Paper roll splicing machine

automaticcontinuous

Product overview
BHS Corrugated Splicer units are available in multiple versions with varying automation levels and technical options to match corrugator production speed requirements. The Splicer acts as the central element for continuous paper roll changes, enabling high splice performance and compatibility with paper weights from 80 to 440 g/m². The unit is designed for straightforward integration into existing corrugators and for high availability and safety.

TripleControl
TripleControl maintains constant web tension in real time by incorporating all relevant roll data. Tension control is optimized via unwind brakes, festoon carriages and roll acceleration, enabling splice speeds of up to 500 m/min depending on configuration and operating conditions.

Operation

• Operator-oriented design: Accessible layout and intuitive access to speed up splice preparation.
• Integrated service diagnosis system to support maintenance and reduce downtime.
• High safety design using quality components (e.g. F-CPU) and certified according to applicable safety regulations (GS mark).

Other technical features

• RollBoost: increases achievable splice speed.
• PowerBond: increases pressing force during the splicing process.
• LaunchControl: automated splice preparation that ensures even paper tension across the working width.

Machine safety

• Designed and tested to comply with strict safety regulations to protect operators.
• Use of certified components and system diagnostics to maintain high availability.

Characteristics / technical specifications

• Product name: Splicer
• Manufacturer / Brand: BHS Corrugated
• Paper grammage supported: 80–440 g/m²
• Splice speeds: up to 500 m/min (depending on configuration and operating conditions)
• Tension control: TripleControl (real-time constant web tension using unwind brakes, festoon carriages and roll acceleration)
• Key features: RollBoost, PowerBond, LaunchControl
• Integration: designed for easy integration into existing corrugators
• Safety & diagnostics: service diagnosis system, F-CPU components, certified to relevant safety regulations (GS mark)
• Primary function: continuous, reliable paper roll changes to support increased production output
