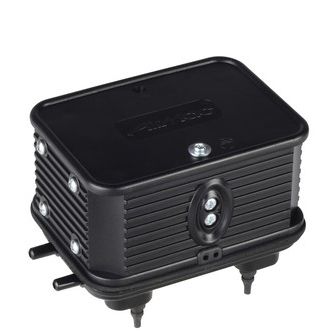

Diaphragm pump DB5/DB5Sairfor gaselectric
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- air, for gas
- Operation
- electric
- Mobility
- stationary
- Domain
- industrial, medical
- Applications
- outlet
- Voltage
- 24 V, 12 V, 380 V
- Other characteristics
- OEM, linear, miniature, integrated
- Flow
0.13333 l/min, 10 l/min
(2.11338 us gal/min, 2.64172 us gal/min)Min.: 0 l/min
(0 us gal/min)- Pressure
Min.: -170 mbar
(-2.466 psi)Max.: 170 mbar
(2.466 psi)- Power
9 W
(0.01 hp)- Output diameter
5.6 mm
(0.22 in)- Length
106 mm
(4 in)- Width
81 mm
(3.19 in)- Height
89 mm
(3.5 in)
Description
The DB5 / DB5S is the 10 l/min miniature linear diaphragm pump from the Airmac DBS Series. With an OEM component deisgn these pumps are ideally suited to applications requiring long life, low pressure differentials and low sound. Examples are air / gas monitoring, medical massage systems and fragrance generation. They are supplied with inlet and outlet porting, integrated 'pull-through' vibration mounts and connection leads. Available voltages: 12 V / 50 Hz, 24 V / 50 Hz, 230 V / 50 Hz.
› OEM component with inlet and outlet ports
› Low sound level
› Low power consumption
› Lightweight / compact
› Integrated 'pull-through' vibration mounts
› Long life linear drive
DB5 is pressure only (with outlet port only).
DB5S is for vacuum and pressure (with inlet and outlet ports).
