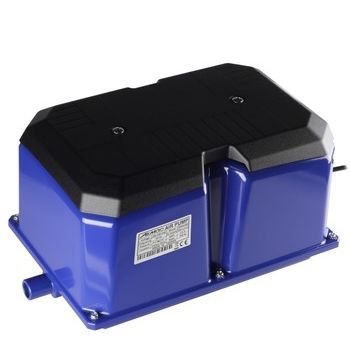

Air pump DBMX300for gaselectricdiaphragm
Add to favorites
Compare this product
Characteristics
- Fluid
- air, for gas
- Operation
- electric
- Technology
- diaphragm
- Mobility
- stationary
- Domain
- industrial
- Applications
- service, outlet
- Voltage
- 230 V
- Other characteristics
- filter, linear, integrated
- Flow
Min.: 100 l/min
(26.41721 us gal/min)Max.: 400 l/min
(105.66882 us gal/min)- Pressure
Min.: 100 mbar
(1.45 psi)Max.: 250 mbar
(3.626 psi)- Power
298 W
(0.41 hp)- Fluid temperature
Min.: -10 °C
(14 °F)Max.: 40 °C
(104 °F)- Length
349 mm
(14 in)- Width
230.5 mm
(9.07 in)- Height
220 mm
(8.66 in)- Weight
19.1 kg
(42.11 lb)
Description
The DBMX300 is the 300 l/min linear diaphragm pump from the Airmac DBMX Series. It offers low noise with stable performance over the long lifespan of the pump. It is sold complete with a robust and sound reducing aluminium housing, integrated inlet filter, rubber feet, outlet port with additional rubber elbow connector and clamps, power cord and EU plug. To accomodate the increased performance when compared to the DBMX pumps below 250 l/min, this pump is designed with a dual drive system sharing the load efficiently over 4 heads.
› Long life linear drive
› Safety switch to protect against diaphragm failure
› Fully serviceable (⇒ service kits)
