Diaphragm pump DT80filterairfor gas
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm, filter
- Fluid
- air, for gas
- Operation
- electric
- Mobility
- stationary
- Domain
- industrial
- Applications
- service, outlet
- Other characteristics
- compact, linear, integrated
- Flow
Max.: 80 l/min
(21.13376 us gal/min)Min.: 55 l/min
(14.52946 us gal/min)- Pressure
Max.: 250 mbar
(3.626 psi)Min.: 100 mbar
(1.45 psi)- Power
58 W
(0.08 hp)- Fluid temperature
Max.: 40 °C
(104 °F)Min.: -10 °C
(14 °F)- Length
202 mm
(8 in)- Width
177 mm
(6.97 in)- Height
186 mm
(7.32 in)- Weight
5.4 kg
(11.9 lb)
Description

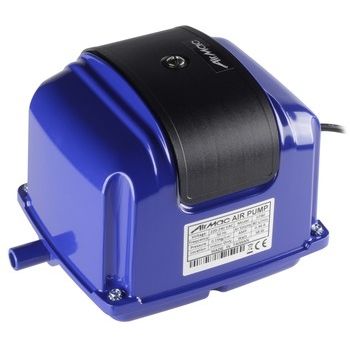

The DT80 is the 80 l/min linear diaphragm pump from the Airmac DT Series. It offers both compact design and extremely low power consumption which significantly reduces operating costs over the long lifespan of the pump. It is sold complete with a robust and sound reducing aluminium housing, integrated inlet filter, rubber feet, outlet port with additional rubber elbow connector and clamps, power cord and EU plug.
› Compact design
› Long life linear drive
› Safety switch to protect against diaphragm failure
› Fully serviceable (⇒ service kits)
