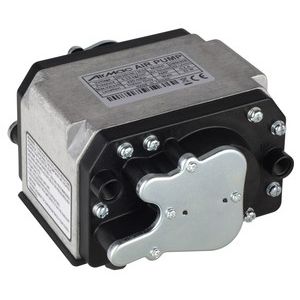

Diaphragm pump DBM40Bairfor gaselectric
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- air, for gas
- Operation
- electric
- Mobility
- stationary
- Domain
- industrial, medical
- Applications
- outlet
- Material
- metal
- Voltage
- 380 V
- Other characteristics
- compact, OEM, linear, miniature, integrated, screw-in
- Flow
67 l/min
(17.69953 us gal/min)- Pressure
Max.: 375 mbar
(5.439 psi)Min.: -325 mbar
(-4.714 psi)- Power
34 W
(0.05 hp)- Fluid temperature
Max.: 40 °C
(104 °F)Min.: -10 °C
(14 °F)- Length
133 mm
(5 in)- Width
118 mm
(4.65 in)- Height
91 mm
(3.58 in)- Weight
1.9 kg
(4.19 lb)
Description
The DBM30B is the 40 l/min (at 150 mbar) miniature linear diaphragm pump from the Airmac DBM Series. With an OEM component deisgn these pumps are ideally suited to applications requiring long life, compact design and low pressure differentials. This series has a metal housing for very low sound levels. Examples applications are air / gas monitoring, medical massage systems and vacuum holding. They are supplied with inlet and outlet 1/8" NPT porting, 2 x screw-in barb connectors), integrated M4 vibration mounts and connection leads. Available voltages: 230 V / 50 Hz.
› OEM component with inlet and outlet ports
› Low sound level
› Low power consumption
› Lightweight / compact
› Integrated M4 vibration mounts
› Long life linear drive
