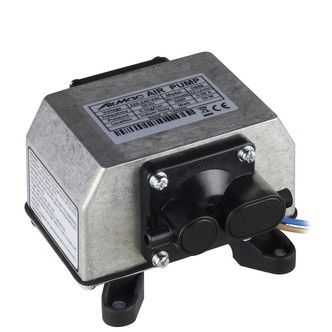

Diaphragm pump DB8B /DB8BSairfor gasmotor-driven
Add to favorites
Compare this product
Characteristics
- Technology
- diaphragm
- Fluid
- air, for gas
- Operation
- motor-driven
- Mobility
- stationary
- Domain
- industrial, medical
- Applications
- outlet
- Voltage
- 380 V
- Other characteristics
- OEM, linear, miniature, integrated
- Flow
9 l/min, 22.5 l/min
(2.37755 us gal/min, 5.94387 us gal/min)- Pressure
Max.: 200 mbar
(2.901 psi)Min.: -160 mbar
(-2.321 psi)- Power
10 W
(0.01 hp)- Fluid temperature
Max.: 40 °C
(104 °F)Min.: -10 °C
(14 °F)- Length
119 mm
(5 in)- Width
112 mm
(4.41 in)- Height
76 mm
(2.99 in)- Weight
1.1 kg
(2.43 lb)
Description
The DB8B and DB8BS is the 22.5 l/min miniature linear diaphragm pump from Airmac. Without the need for bearings or brushes, these linear driven pumps have extremely long life in comparision to conventional motor driven pumps. With an OEM component deisgn these pumps are ideally suited to applications requiring long life, low pressure differentials and low sound. Examples are continuous air / gas monitoring, medical massage systems and fragrance generation. They are supplied with inlet (BS model) and outlet porting, integrated vibration mounts and connection leads. Available voltage: 230 V / 50 Hz.
› OEM component with inlet (BS model) and outlet ports
› Low sound level
› Low power consumption
› Lightweight / compact
› Integrated vibration mounts
› Long life linear drive
DB8B is pressure only (with outlet port only, inlet is via an orifice on underside of pump).
DB8BS is for vacuum and pressure (with inlet and outlet ports).
DB8B is pressure only (with outlet port only, inlet is via an orifice on underside of pump).
DB8BS is for vacuum and pressure (with inlet and outlet ports).
